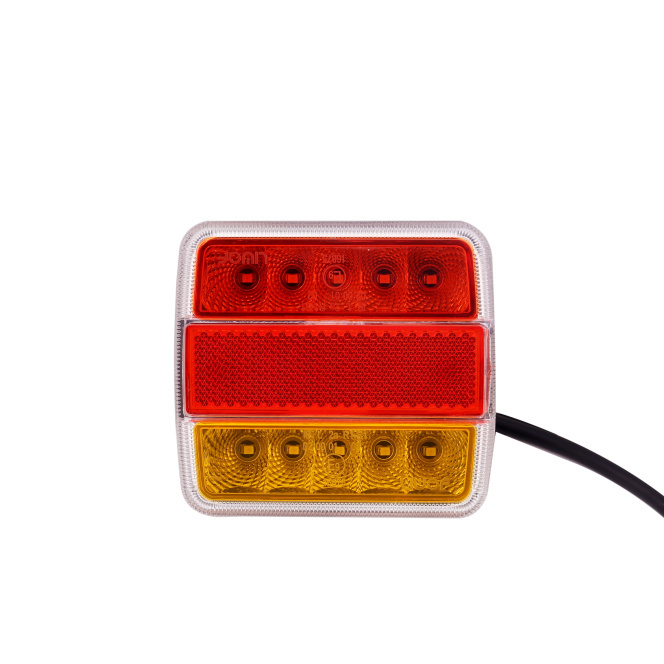

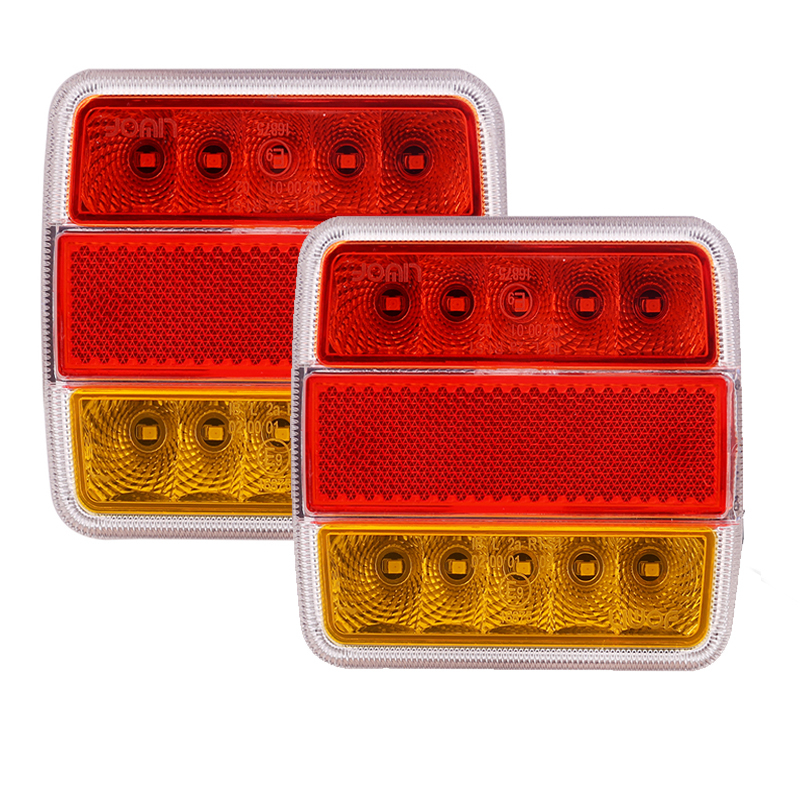

12/24V 5-Function LED Trailer Light - Stop/Tail/Indicator/Reflector/Rear Fog - 14 Diodes with 45/55mm Fixing Centres

Technical Specifications

• Product Type: 5-Function LED Trailer Light (Multifunction Combination Light)

• Model: 87103

• Functions: Stop / Tail / Indicator / Reflector / Rear Fog

• Voltage: 12/24V DC (Universal Compatibility)

• LED Count: 14 High-Brightness LEDs

• Size: Compact Rectangular Design

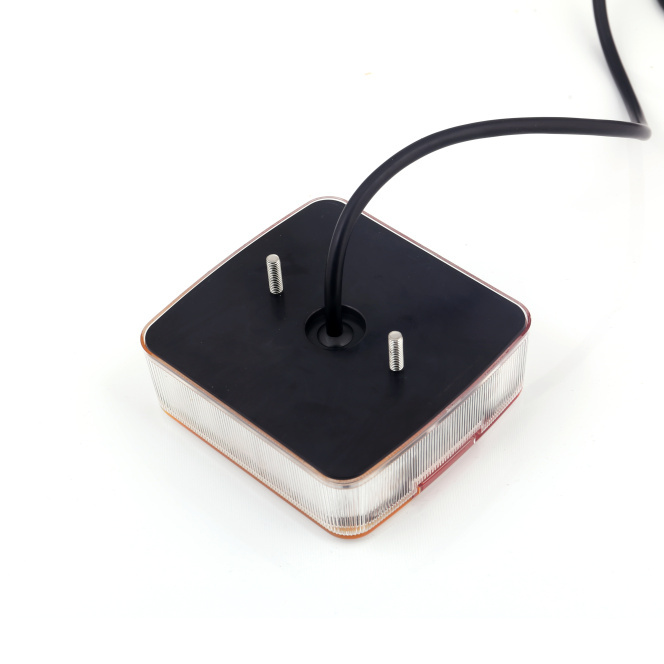

• Mounting Screws Distance: 45mm and 55mm (Dual Spacing Options)

• Housing Material: Durable ABS Plastic

• Lens Material: High-Transparency Polycarbonate (PC)

• Mounting: Surface Mount with Pre-Drilled Holes

Key Features

• 5 Essential Functions in One Unit
  Combines stop, tail, indicator, reflector, and rear fog light functions into a single compact housing, reducing installation complexity and ensuring full compliance with lighting regulations.

• Universal 12/24V Compatibility
  Designed to work seamlessly on both 12V passenger vehicles and 24V commercial trucks and machinery, offering versatile application across your entire fleet.

• 14 High-Brightness LEDs
  Equipped with 14 powerful LEDs to deliver exceptional brightness and visibility, ensuring other drivers can clearly see your braking, turning, and presence in all conditions.

• Dual Mounting Hole Spacing
  Features both 45mm and 55mm mounting screw distances, allowing it to fit a wide range of trailer frames and replace many existing light models without drilling new holes.

• Integrated Rear Fog Light Function
  Includes a dedicated rear fog light function for improved visibility in adverse weather conditions such as heavy rain, fog, or dust, enhancing safety on the road.

• Durable Construction
  Built with robust ABS plastic housing and high-transparency PC lens to withstand vibration, impact, and outdoor exposure for long-lasting performance.

Smart FAQ

• Q1: What are the five functions of this light?
  A: This light performs five functions: Stop (brake light), Tail (position/parking light), Indicator (turn signal), Rear Fog (adverse weather visibility), and includes a built-in passive Reflector.

• Q2: What voltage does this light work with?
  A: It works with both 12V and 24V electrical systems, making it ideal for cars, trailers, trucks, buses, and agricultural machinery.

• Q3: What is the mounting screw distance?
  A: It features dual mounting options with screw centres of 45mm and 55mm, giving you flexibility for different trailer frame setups.

• Q4: How bright is this light?
  A: It uses 14 high-intensity LEDs to provide excellent visibility, much brighter than traditional filament bulbs and with a longer lifespan.

• Q5: Does it include a license plate light?
  A: This specific model (87103) focuses on stop, tail, indicator, reflector, and rear fog functions. It does not include integrated license plate illumination.

• Q6: Is this light waterproof?
  A: While an IP rating is not specified in the provided data, it is designed with sealed construction suitable for outdoor trailer use. For applications requiring full submersion protection, please check IP67-rated models.

• Q7: What is the size of this light?
  A: The light features a compact rectangular design. Please refer to the actual product dimensions in the full technical datasheet for precise measurements.
