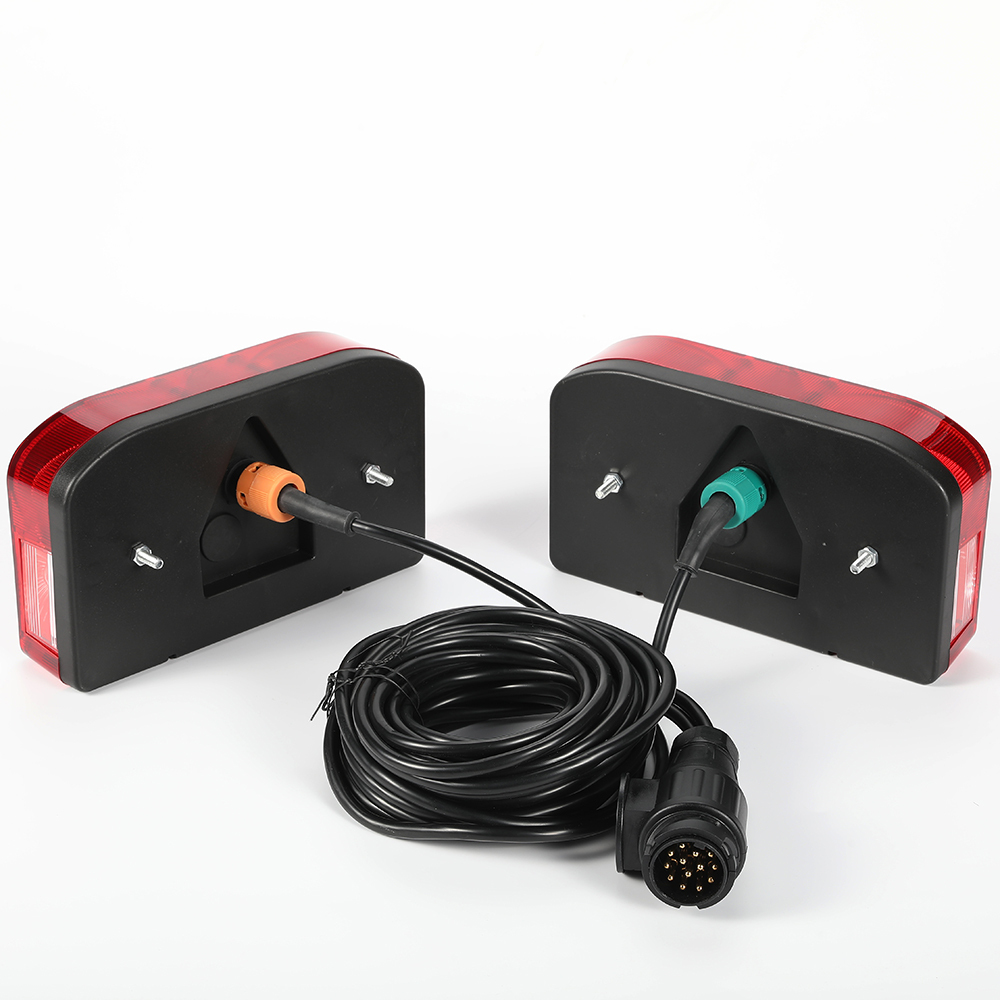

7 Function Trailer Tail Lamp Kit 12V with 13-Pin Plug Bulb Type Rear Lights for Trailers
Product Overview (EU Market Focus)
This 7 function trailer tail lamp kit is designed for European trailers and caravans, providing a complete rear lighting solution with all mandatory functions for EU road use.
Featuring traditional 21W / 5W bulb technology, a 5m cable with 13-pin plug, and quick connection terminals, this kit is ideal for replacement applications, cost-sensitive markets, and OEM trailer production across Europe.
The lamp housings are manufactured from durable PC + ABS material, offering reliable performance in outdoor environments.
🔹 Key Features
-
7 function trailer tail lamp kit for European trailers
-

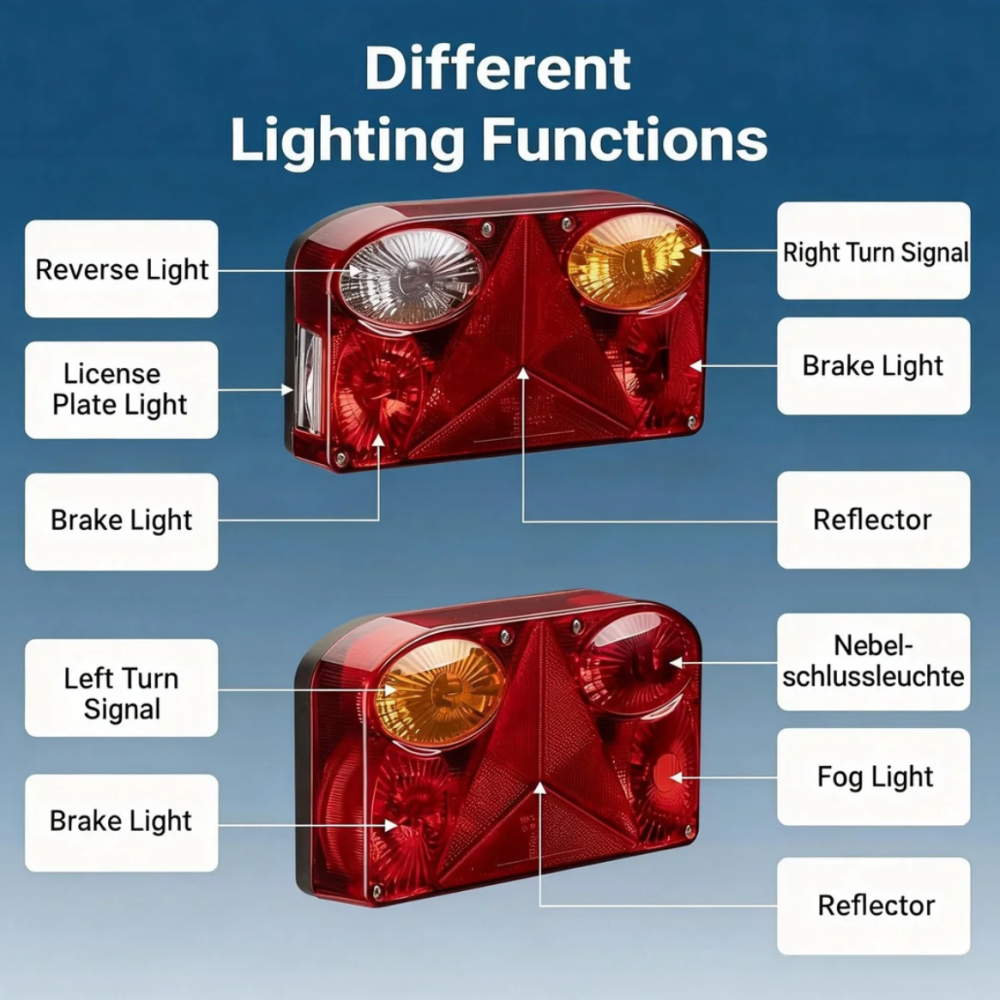

Rear light functions: stop, tail, indicator, reflector, number plate, reverse & fog
-
12V bulb type system using 21W / 5W bulbs
-
Quick connection wiring for fast and easy installation
-
PC + ABS housing for impact resistance and long service life
-

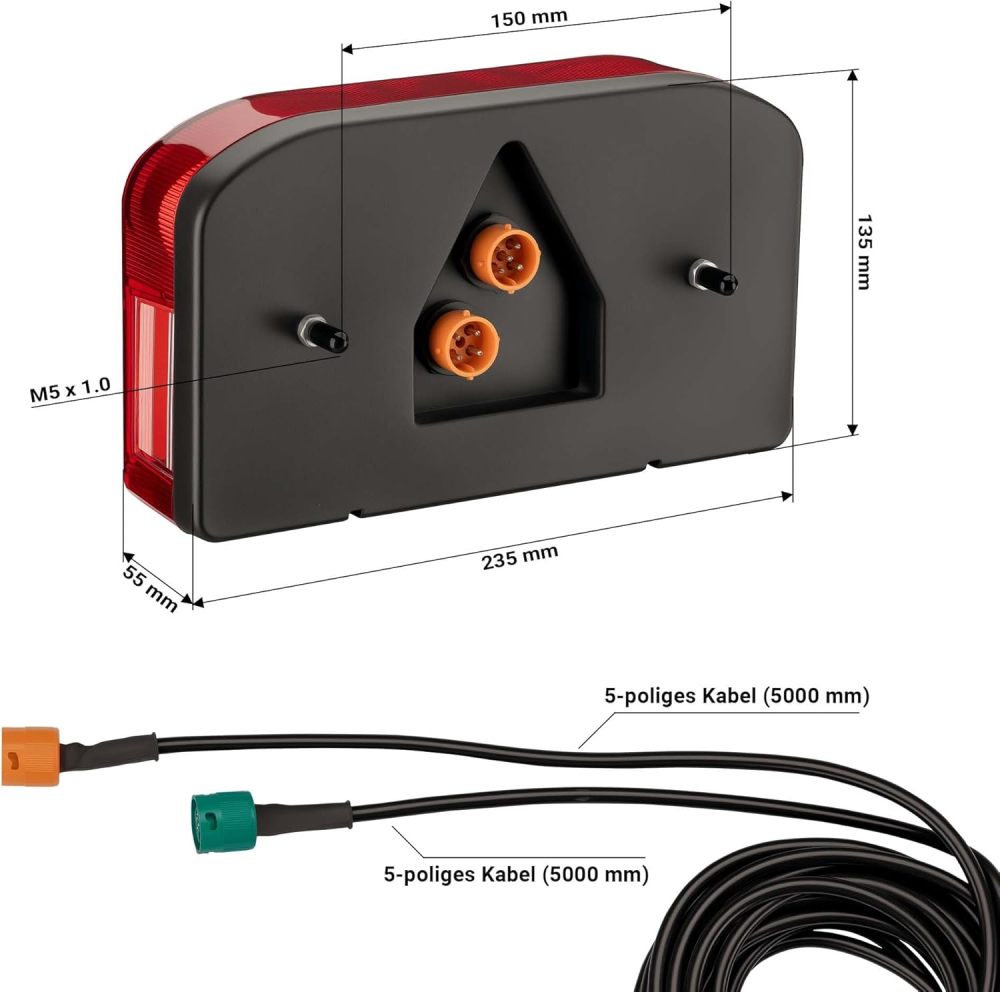

Standard lamp size: 218 × 140 mm
-
Mounting screw distance: 150 mm, compatible with common EU brackets
-
Supplied with 5m cable and 13-pin plug for EU trailer connections
-
Suitable for replacement market, wholesale supply, and OEM use
🔹 Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Trailer Tail Lamp Kit |
| Lighting Type | Bulb (Incandescent) |
| Voltage | 12V |
| Bulb Rating | 21W / 5W |
| Functions | Stop / Tail / Indicator / Reflector / Number Plate / Reverse / Fog |
| Housing Material | PC + ABS |
| Connection | Quick Connections |
| Cable Length | 5 m |
| Plug Type | 13-Pin |
| Lamp Size | 218 × 140 mm |
| Mounting Screw Distance | 150 mm |
| Packaging | 1 set / carton |
| Market | Europe (EU) |
🔹 Typical European Applications
This 7 function 12V trailer tail lamp kit is suitable for:
-
Utility and box trailers
-
Caravans and camper trailers
-
Light commercial trailers
-
Agricultural and leisure trailers
