Technical Specifications
-

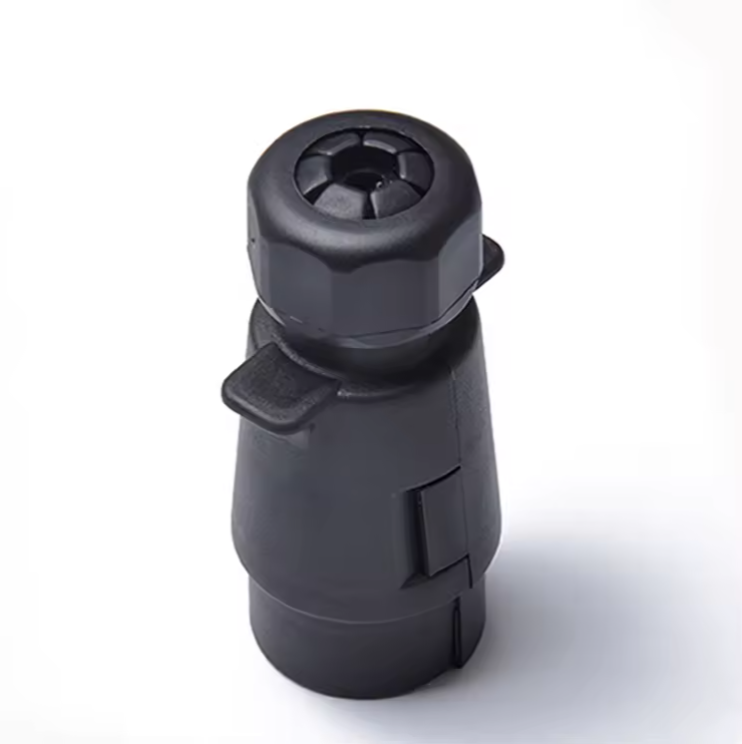

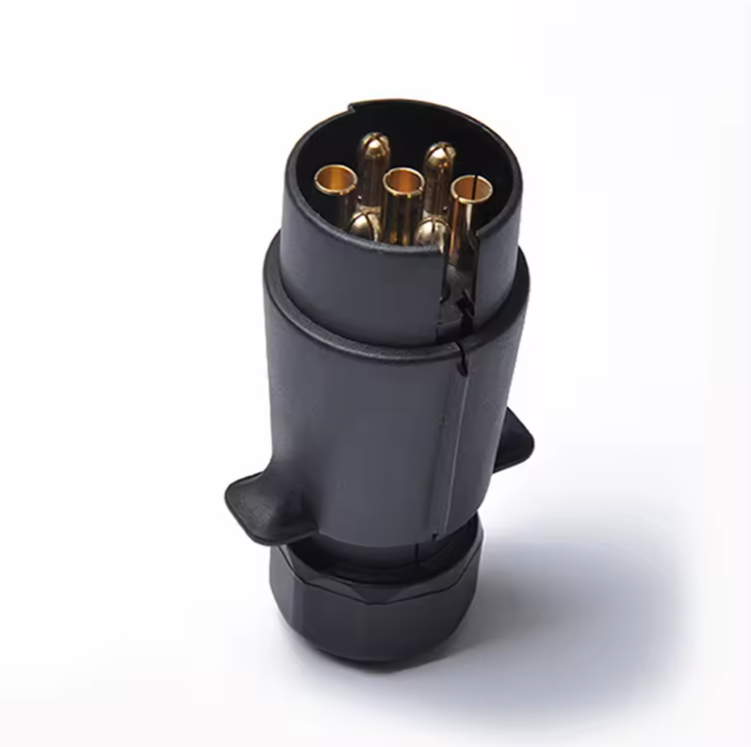

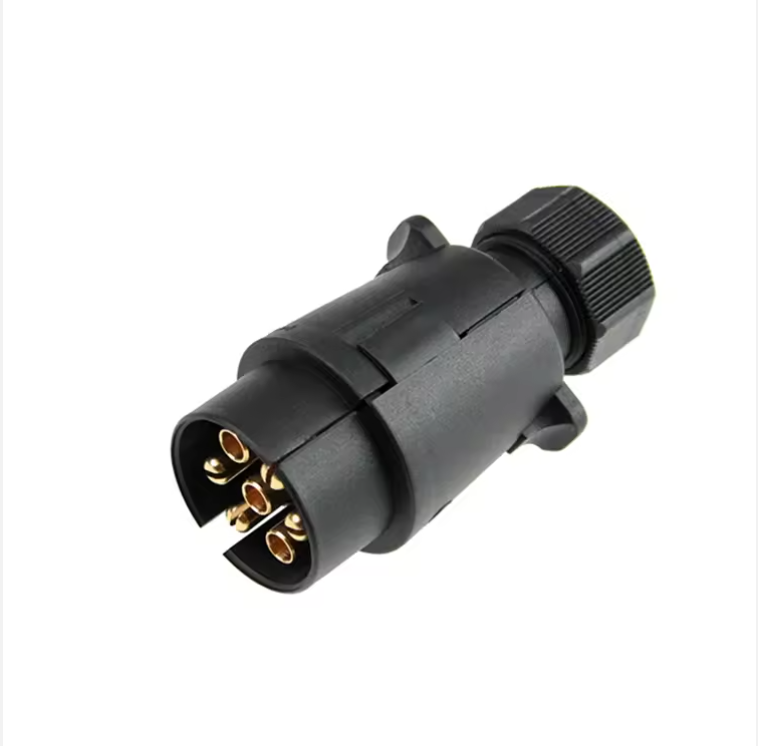

Product Type: 7-Pin Trailer Connector Plug (PVC Housing)
-
Housing Material: High-Strength PVC (Corrosion & Wear Resistant)
-
Terminal Material: 100% Pure Copper Pins
-
Voltage Rating: 12V / 24V DC Systems
-
Wiring Standard: European 7-Pin Type
-
Connection Type: Screw-Type Terminals
-
Sealing Rating: Basic Water & Dust Resistant (Sealed Design)
-
Pin Configuration: Standard EU 7-pin layout for lights, brakes, reverse, and auxiliary
-
Application: Trailer, Caravan, Recreational Vehicle (RV), Boat, Truck
-
Primary Function: Secure electrical connection for vehicle lighting and signal systems
Key Features
100% Copper Terminals for High Conductivity
Pure copper pins ensure minimal electrical resistance, stable current flow, and reliable signal transmission for all trailer lighting functions, reducing the risk of flickering or failure.
Durable PVC Housing for Corrosion Resistance
The sturdy PVC construction provides long-lasting protection against environmental wear, rust, and corrosion, making it suitable for frequent use in varied outdoor and marine conditions.
Screw-Type Terminal Design for Easy Wiring
User-friendly screw terminals allow for quick, secure wire connections without specialized tools, simplifying both installation and ongoing maintenance.
Wide Compatibility with EU Standard Trailers
Designed to match European 7-pin wiring standards, this plug is universally compatible with caravans, utility trailers, boats, and trucks requiring a reliable hitch connection.
Sealed Connector Design for Enhanced Safety
The integrated seal helps prevent moisture and dust ingress, reducing the risk of short circuits and electrical faults for safer towing in damp or dirty environments.
Dual Voltage Support for 12V & 24V Systems
Rated for both 12V (passenger vehicles) and 24V (commercial trucks) electrical systems, offering flexible application across different towing setups.
Smart FAQ
Q1: Is this plug compatible with European trailer standards?
A: Yes, it follows the standard European 7-pin wiring configuration, making it suitable for trailers, caravans, and trucks designed for the EU market.
Q2: What are the pins made of, and why does it matter?
A: The pins are made of 100% copper, which offers excellent electrical conductivity, reduces heat buildup, and ensures a stable connection over time compared to cheaper alloy alternatives.
Q3: Can I use this connector with both 12V and 24V vehicles?
A: Absolutely. This plug is rated for both 12V and 24V DC systems, so it can be used with cars, light trucks, and heavier commercial vehicles.
Q4: How waterproof is this trailer plug?
A: It features a sealed design that provides basic protection against water splash and dust—sufficient for typical road use. For submersion or extreme conditions, a higher IP-rated model may be recommended.
Q5: What trailer functions does the 7-pin setup control?
A: It manages all standard lighting and signals: tail lights, brake lights, left/right indicators, fog lights, reverse light, electric brake control, and a permanent power line (often used for charging or interior lights).
Q6: Is the wiring process complicated?
A: Not at all. The screw-type terminals make wiring straightforward—simply strip the wire ends, secure them under the screws, and ensure correct pin matching according to your vehicle’s manual.
