Technical Specifications
-

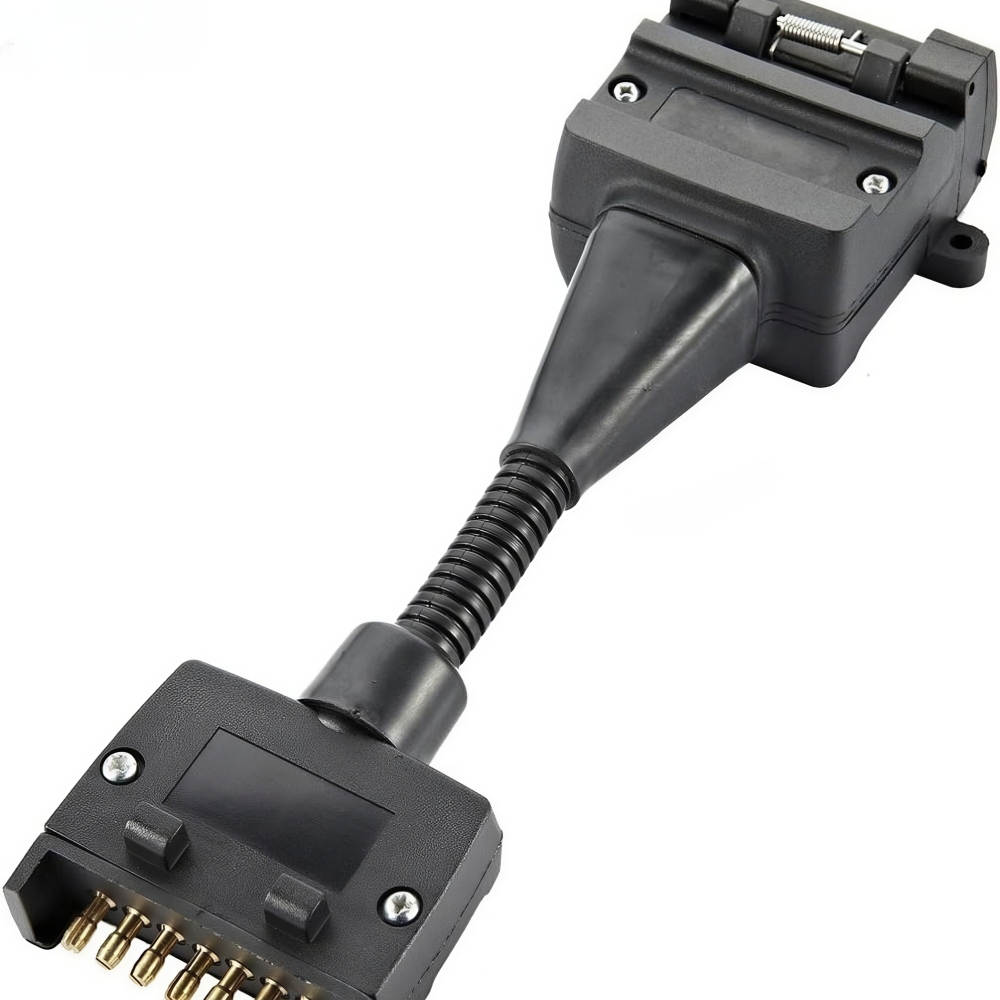

Product Type: Passive Wiring Adapter (Plug Converter)
-
Input Connector: 7-Pin Flat Male Plug (Conforms to common Australian wiring)
-
Output Connector: 12-Pin Flat Female Socket
-
Housing Material: High-Impact ABS Plastic
-
Internal Terminals: Brass Alloy
-
Voltage Rating: 12V DC
-
Current Capacity: Up to 15A per circuit (Suitable for lighting, brakes, and auxiliary power)
-
Sealing: Integrated gasket/ seal for weather resistance
-
Mounting: Direct plug-in (No tools required)
-
Primary Function: Electrical interface conversion between 7-pin and 12-pin flat systems.
Key Features
Precise Australian Market Compatibility
Specifically engineered to address the common need of connecting vehicles with ubiquitous 7-pin flat plugs to newer trailers, caravans, or RVs equipped with 12-pin flat sockets within the Australian towing ecosystem.
Complete Circuit Translation
Faithfully maps all essential functions from the 7-pin side—including tail lights, brake lights, left/right indicators, earth, and electric brake control—to their corresponding pins on the 12-pin side, ensuring no loss of core safety features.
Enables Advanced Trailer Functions
Beyond basics, a correctly wired adapter facilitates critical 12-pin system features such as permanent 12V+ supply for continuous trailer battery charging and ignition-switched 12V circuits for operating fridges or other accessories while driving.
Robust and Weather-Sealed Design
Constructed from durable materials with a focus on sealing critical junctions. This design provides strong defense against moisture, dust ingress, and road grime, promoting long-term reliability in diverse outdoor conditions.
True Plug-and-Play Simplicity
Offers the ultimate convenience. There is no wiring, splicing, or configuration needed. Simply insert the adapter between your vehicle's plug and your trailer's socket for an instant, secure connection.
Smart FAQ
Q1: What is the physical configuration of this adapter?

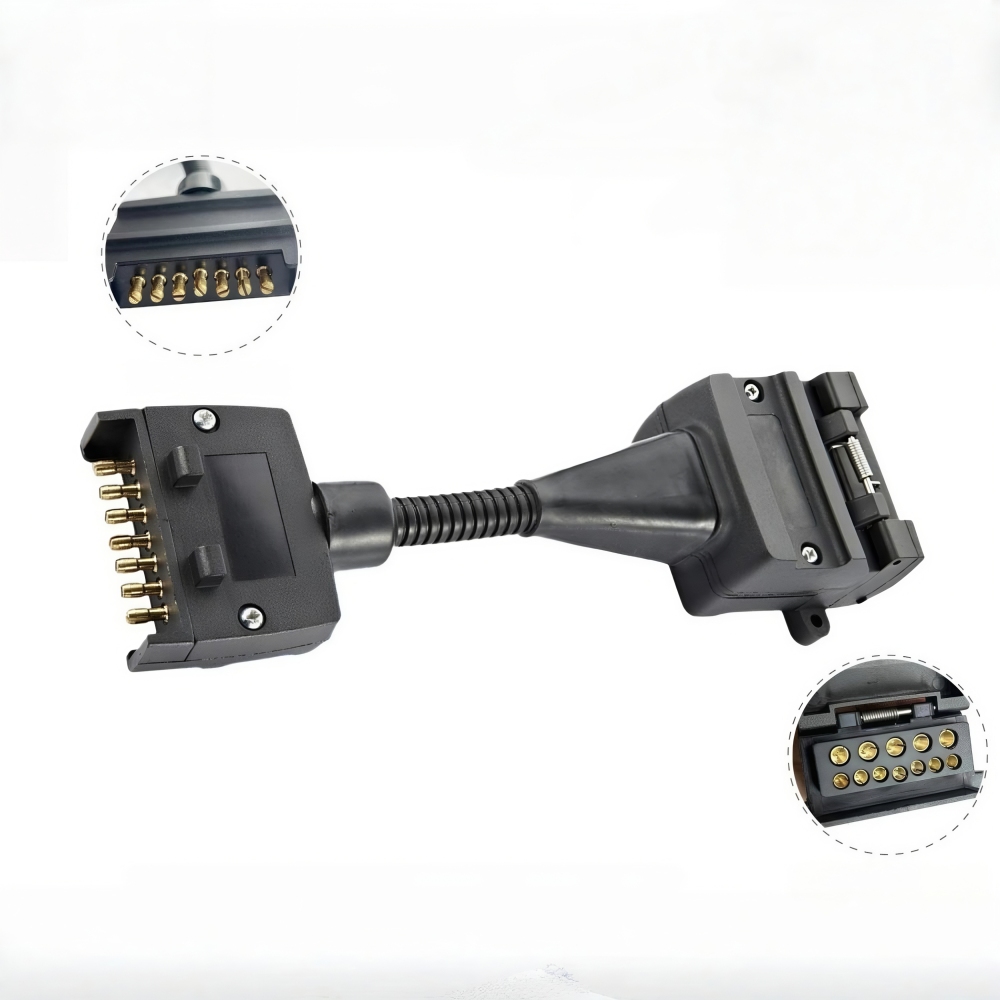

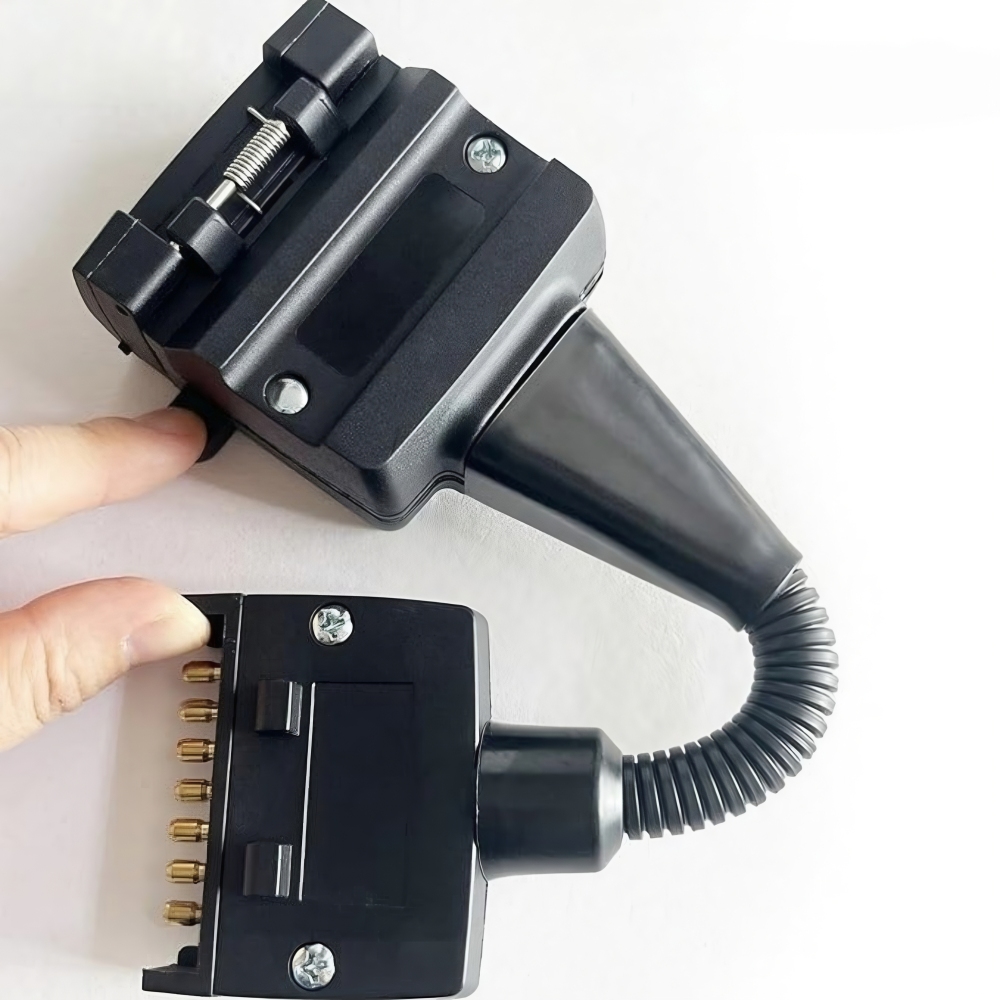

A: This adapter has a 7-pin flat male plug (pins) on one end and a 12-pin flat female socket (holes) on the other end. It is designed to be plugged directly between your vehicle's existing 7-pin output and your trailer's 12-pin input.
Q2: Will my electric trailer brakes function properly with this adapter?
A: Yes. A fundamental requirement of a properly functioning 7-to-12 pin adapter is the pass-through of the electric brake control signal. Your braking system will operate as intended.
Q3: Can I use this to charge my caravan's auxiliary battery while driving?
A: This is a key purpose of such an adapter. It should connect the appropriate constant power source from your vehicle's 7-pin system to the dedicated charging pin on the 12-pin side. Please confirm with the supplier that this specific model supports the “battery charge” circuit.
Q4: Is it suitable for use in all weather conditions?
A: The adapter is built with sealed connectors that offer significant resistance to water splash and dust, making it suitable for normal rain and road conditions.
Q5: My vehicle has a 7-pin socket. Is this adapter correct for me?
A: No. This adapter is NOT for that setup. This product is designed for vehicles that have a 7-pin flat PLUG (pins). If your vehicle has a socket (holes), you require a different solution. Always verify the physical connectors on both your vehicle and trailer.
