Technical Specifications
-

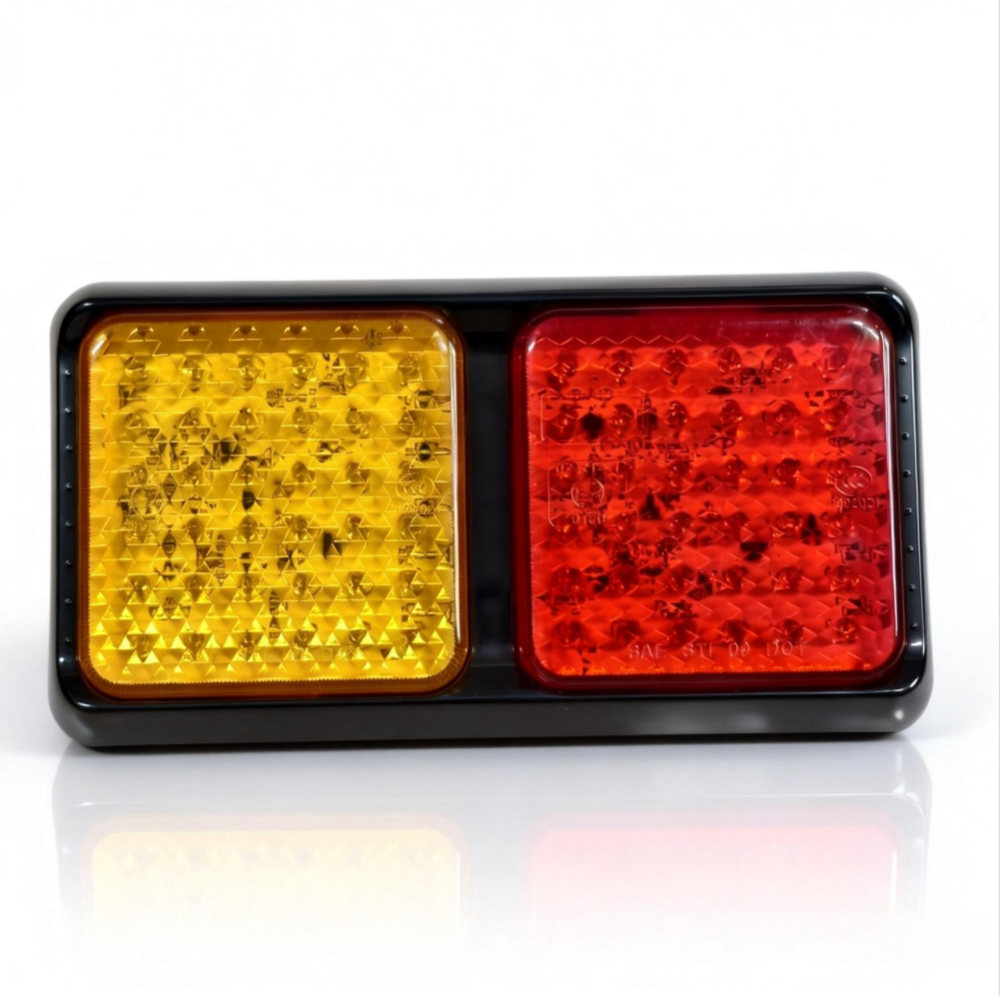

Product Type: Dual-Color LED Trailer Tail Light
-
Functions: 4-in-1 (Stop / Tail / Turn Signal / Reverse)
-
LED Configuration: 72 High-Intensity LEDs (Red & Amber)
-
Voltage: 12V DC
-
Certification: E-MARK (ECE R10) & DOT Compliant
-
Waterproof Rating: IP67 (Fully Sealed Against Dust and Water Immersion)
-
Housing Material: UV-Resistant ABS Plastic
-
Lens Material: Polycarbonate (PC), Impact-Resistant
-
Signal Colors: Red (Stop/Tail/Reverse), Amber (Turn Indicator)
-
Mounting: Standard Surface Mount with Pre-drilled Holes
-

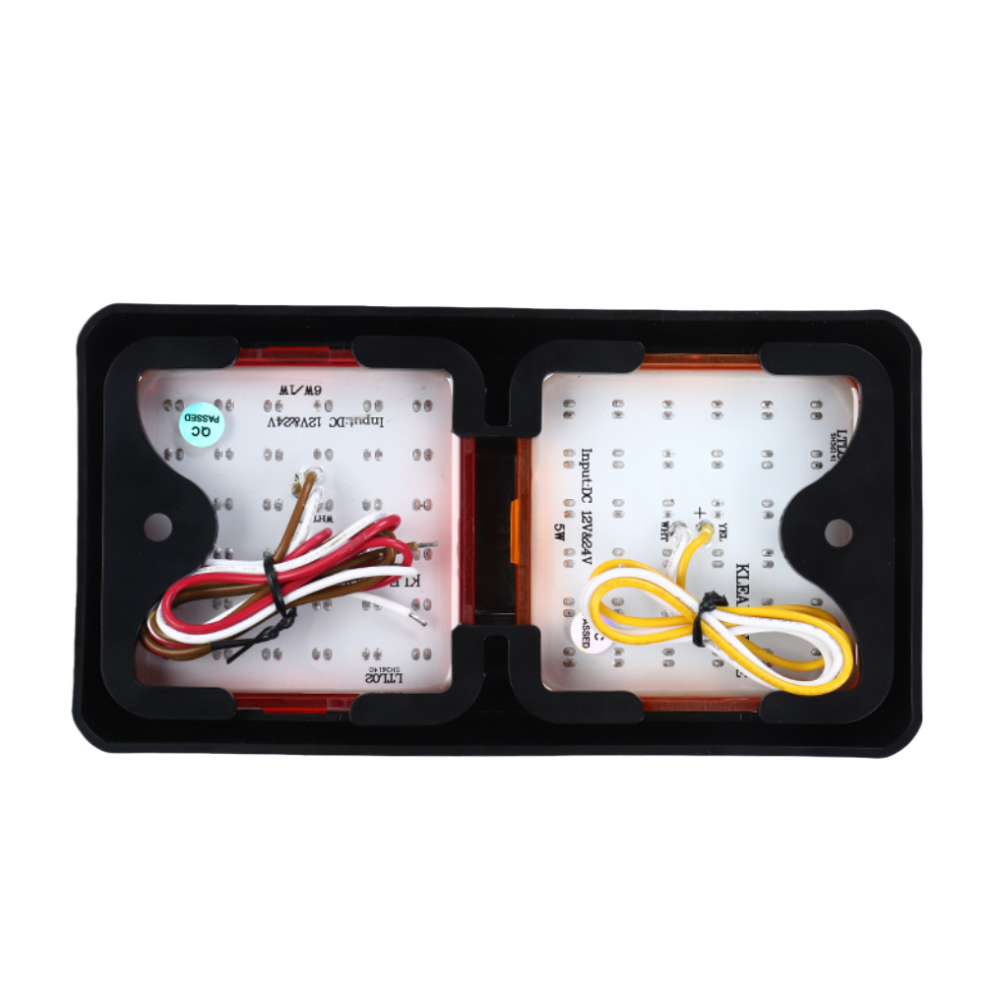

Wiring: 5-Wire Connection with Quick-Connect Plug
Light size:188*100*28mm
Screw: M6
Key Features
Globally Recognized Certification for Compliance
Dual E-MARK (European) and DOT (North American) certification ensures this light meets stringent international safety and performance standards, providing legal compliance for trailers and caravans in most global markets.
Dual-Color LED Separation for Enhanced Safety
Red LEDs handle stop, tail, and reverse functions, while dedicated amber LEDs provide clear turn signals. This color separation improves signal distinction for following drivers, reducing confusion and enhancing road safety.

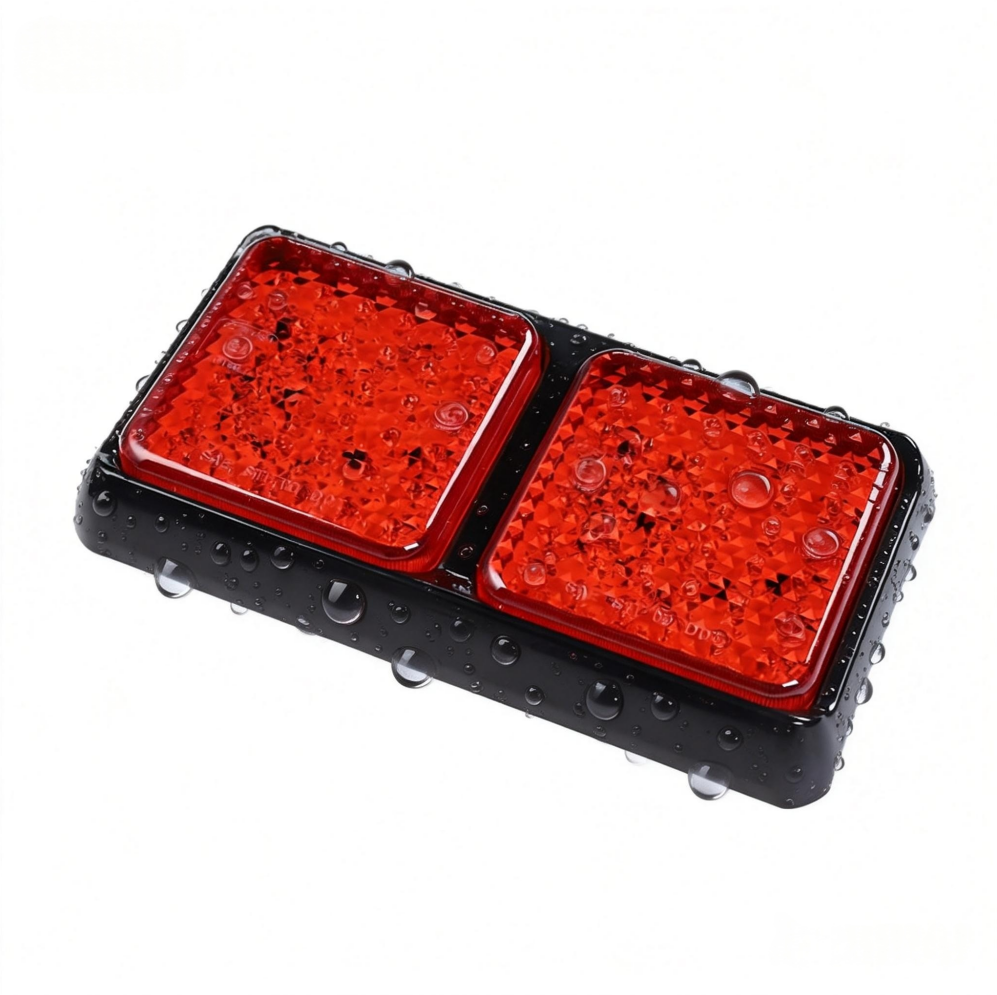

Fully Sealed IP67 Waterproof Construction
The housing is completely glue-sealed to achieve IP67 rating, offering total protection against dust, high-pressure water jets, and temporary submersion—ideal for boat trailers, harsh weather, and off-road environments.
Optimized 72 LED Array for Balanced Brightness
Engineered with 72 high-luminosity LEDs strategically distributed to deliver excellent illumination for all functions while maintaining energy efficiency and long-term reliability.
Rugged ABS Housing with UV-Resistant PC Lens
Built from high-impact ABS plastic combined with a polycarbonate lens that resists yellowing, cracking, and corrosion. This durable design withstands vibration, stone chips, and prolonged sun exposure.
Smart FAQ
Q1: What does “dual-color” mean in this light?
A: It means the light uses separate LED colors for different functions: red LEDs for the brake, tail, and reverse lights, and amber LEDs specifically for the turn signals. This improves clarity and safety compared to single-color lights that use red for everything.
Q2: Is this light legal for use in Australia?
A: While E-MARK and DOT are not Australian certifications, products meeting these high international standards often align with Australian Design Rules (ADRs) for lighting. However, final roadworthiness approval is the responsibility of the vehicle owner or installer. This light is designed to meet global regulatory benchmarks for performance and durability.
Q3: How does IP67 waterproofing benefit my trailer?
A: IP67 ensures the light is completely dust-tight and can survive immersion in 1 meter of water for up to 30 minutes. This makes it ideal for boat trailers (during launching), caravans in heavy rain, or off-road trailers exposed to mud and water crossings.
Q4: Can I replace my old incandescent light with this LED model?
A: Yes, in most cases. This is a direct replacement for standard 4-function trailer lights. You may need to connect 5 wires (ground, tail, stop, left/right turn, reverse). Note: If your trailer uses a shared stop/turn signal system (common in the US), ensure your vehicle’s wiring is compatible with separate turn and stop circuits.
Q5: Why choose a light with both E-MARK and DOT certification?
A: Dual certification indicates the product has passed rigorous testing for both European (E-MARK) and North American (DOT) markets. This broader compliance makes it a versatile, high-quality choice for export-oriented sellers and users who prioritize internationally recognized safety standards.
Q6: Does it come as a pair or a single unit?
A: Typically, trailer lights are sold as single units. You will need to purchase two—one for the left side and one for the right side—to fully equip your trailer. Check the product listing to confirm the quantity.
