Technical Specifications
-

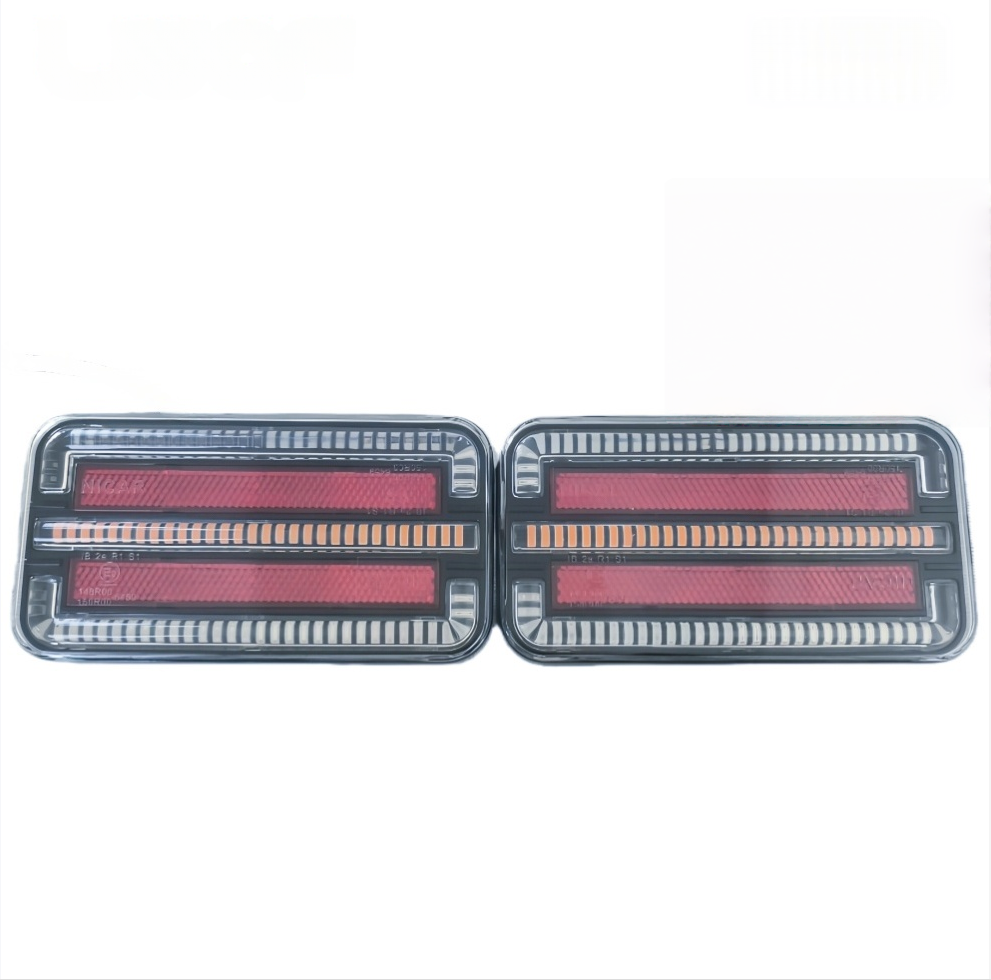

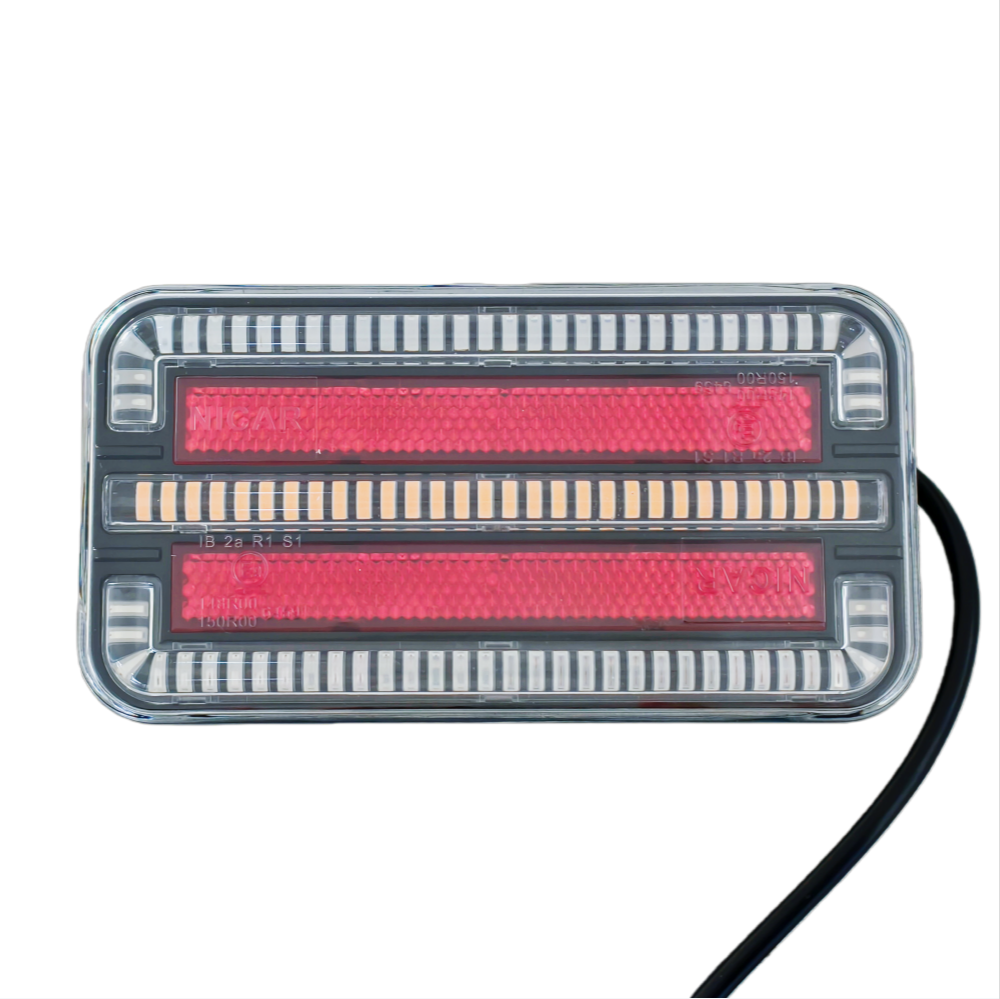

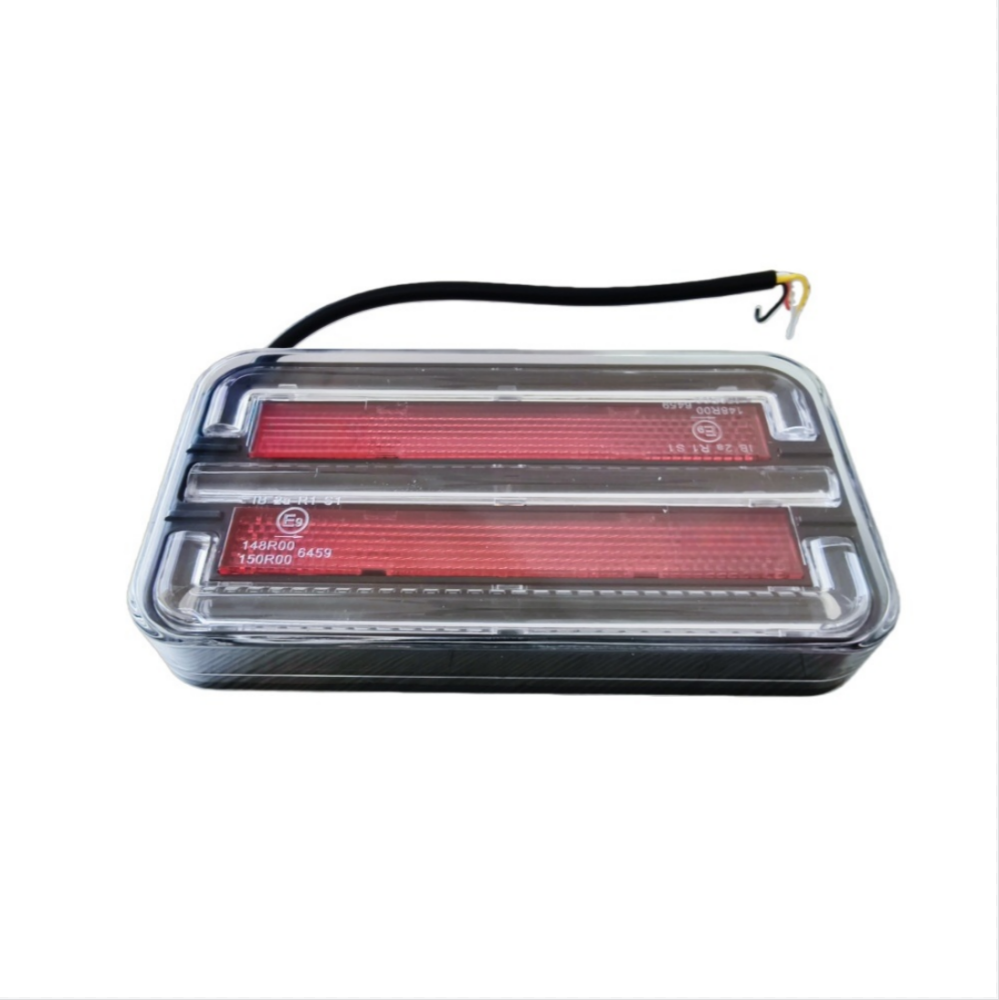

Product Type: Multi-Function LED Trailer Light (Brake, Rear Position, Turn Indicator)
-
Set Includes: Typically 2 Lights (Left and Right Configuration)
-
Functions:
-
Voltage Range: 12-24V DC (Universal Compatibility)
-
Certification: E-Mark Approved (ECE R10 & R148)
-
Waterproof Rating: IP66 (Protection Against Strong Water Jets & Dust)
-
Housing Material: High-Impact ABS Plastic
-
Lens Material: Polycarbonate (PC) with Color-Specific Sections (Red/Amber)
-

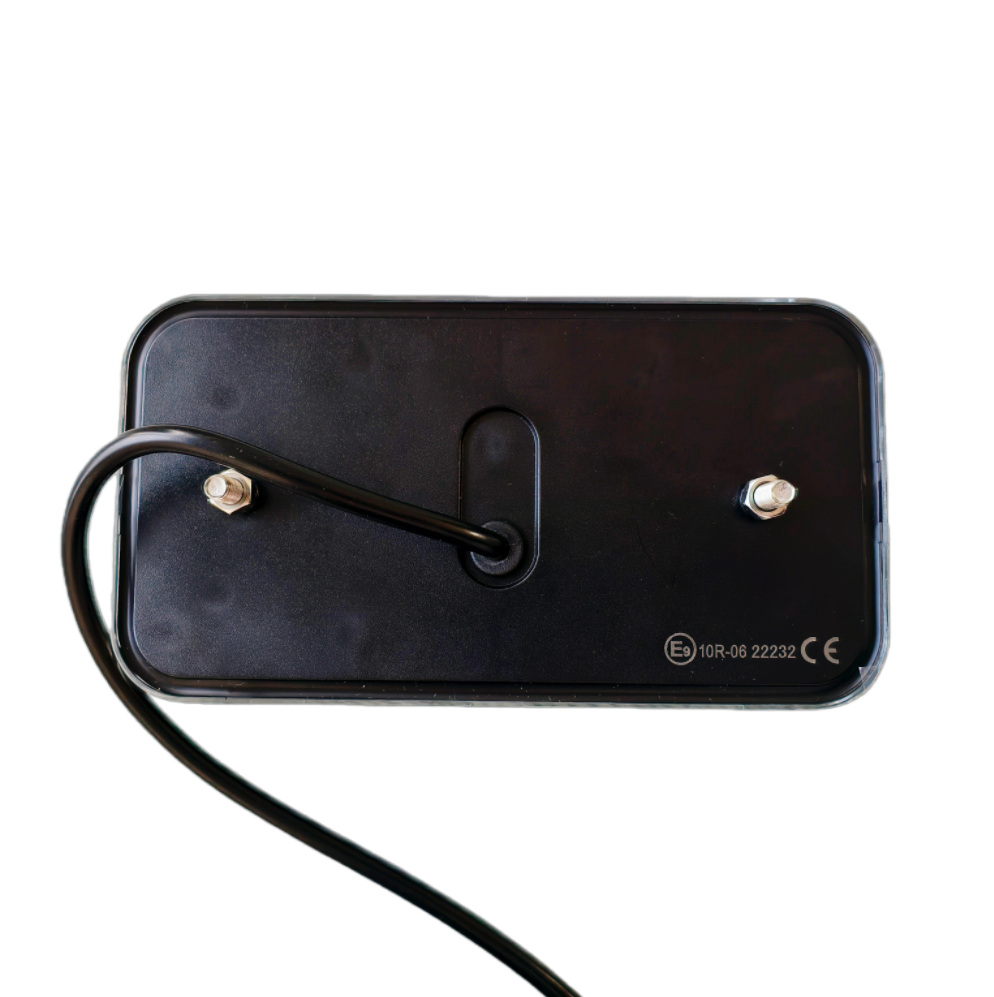

Mounting: Standard Bolt-On with Pre-Drilled Holes
-
Wiring: 3-Wire or 4-Wire Configuration (Ground, Tail, Brake, Turn)
Key Features
E-Mark Certified for European Road Compliance
Officially approved under ECE regulations (R10 for EMC, R148 for lighting), ensuring these lights meet stringent European safety, performance, and durability standards for legal use on roads.
Multi-Function Design in a Single Unit
Combines three critical rear lighting functions—brake light, tail (position) light, and turn indicator—into one compact housing, simplifying wiring, installation, and maintenance on trailers and caravans.
Universal 12V/24V Dual-Voltage Compatibility
Engineered to operate seamlessly on both 12V (cars, light trailers) and 24V (trucks, commercial vehicles) electrical systems without requiring additional resistors or voltage converters.
IP66 Rated for Weather & Dust Resistance
Rated IP66 for strong protection against dust ingress and powerful water jets from any direction, making these lights reliable in heavy rain, muddy conditions, and during vehicle washing.
High-Brightness LEDs for Enhanced Safety
Equipped with long-life, high-lumen LEDs that deliver immediate, crisp illumination for each function, significantly improving visibility and reaction time for following drivers.
Robust & Durable Construction
Built from UV-resistant ABS plastic and impact-tough polycarbonate lenses to withstand vibration, stone chips, temperature extremes, and prolonged outdoor exposure without fading or cracking.
Smart FAQ
Q1: What functions do these lights include?
A: Each light unit combines three functions:
-
A red section that serves as both the tail light (dim) and brake light (bright).
-
An amber section dedicated to the left or right turn signal.
You will need two lights (left and right) to cover both sides of the trailer.
Q2: Is E-Mark approval valid outside Europe?
A: E-Mark is a European standard. While it indicates high safety and quality, local regulations (e.g., Australian ADRs, US DOT) vary. For use outside Europe, check if E-Mark is accepted or if additional local certification is required for road legality.
Q3: Can I use these on a 24V truck without any modifications?
A: Yes. These lights are designed for automatic 12/24V compatibility. Connect them directly to a 24V system—no additional wiring, resistors, or converters are needed.
Q4: What does IP66 rating mean for real-world use?
A: IP66 ensures the lights are:
-
Completely dust-tight (6).
-
Protected against strong water jets (6) from any direction (e.g., heavy rain, pressure washing).
They are suitable for most outdoor and off-road conditions but are not designed for prolonged submersion.
Q5: How many wires do I need to connect?
A: Typically, each light requires 3 or 4 wires:
Q6: Are these lights sold as a pair?
A: Usually, yes. Trailer rear lights are typically sold as a set of two—one for the left side and one for the right side. Verify the product listing to confirm the quantity included.
Q7: Can I replace my old incandescent lights with these LEDs?
A: Yes, they are designed as direct replacements. Ensure your trailer’s wiring is compatible (separate brake and turn circuits) and that the mounting holes align. LED lights draw less current, which is safer for your vehicle’s electrical system.
