LED Trailer Light Kit 12V/24V with 7-Pin Plug Waterproof Rear Lights

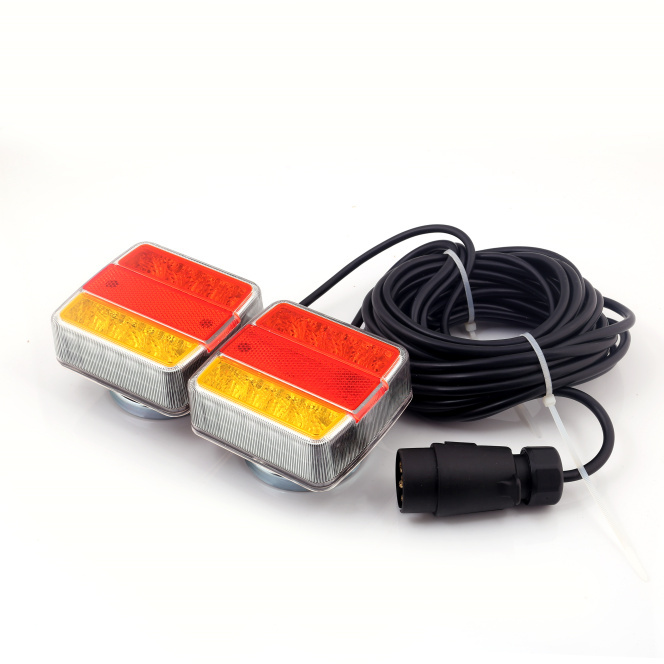

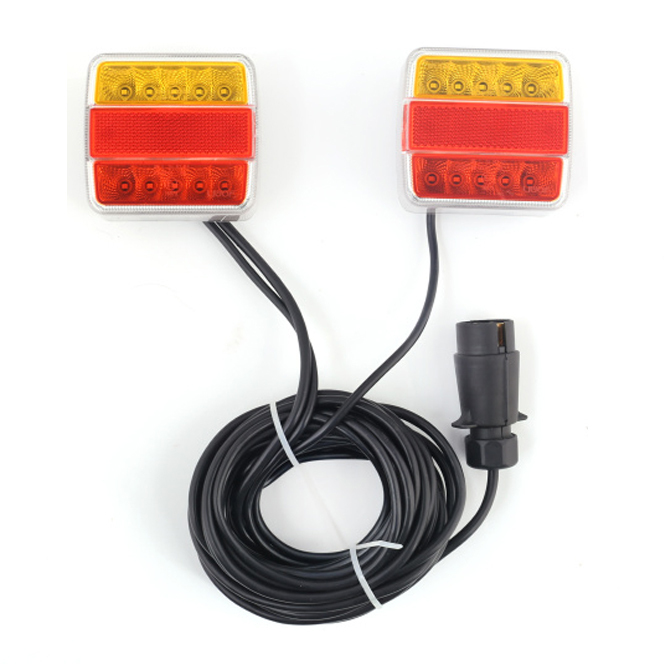

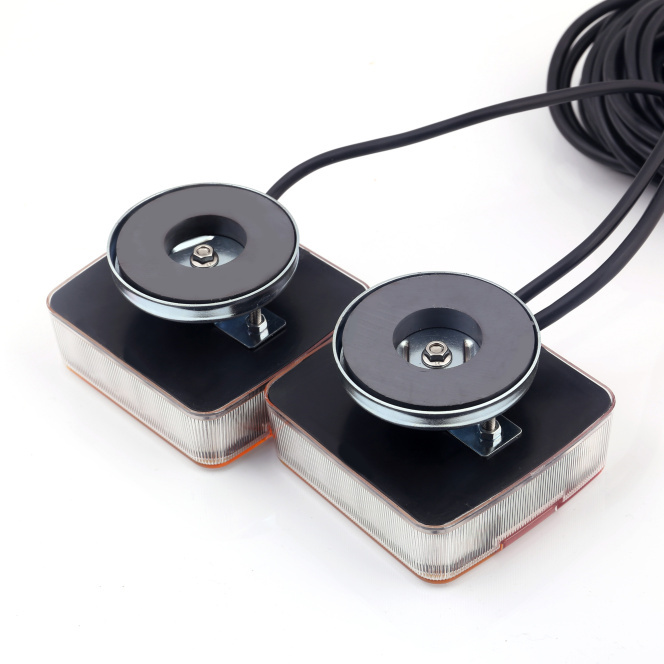

E9 Approved LED Trailer Light Kit 12V/24V with 7-Pin Plug Waterproof Rear Lights
Product Overview
This LED trailer light kit is designed for European trailers, caravans, and light commercial towing applications, offering reliable rear lighting performance with E9 approval for legal road use across the EU.
The kit includes LED rear combination lamps, a 7-pin PVC plug, and a long wiring harness, supporting 12V and 24V systems. With a waterproof construction and high-brightness LEDs, it is ideal for both leisure and professional trailer use in various weather conditions.
🔹 Key Features
-
E9 approved LED trailer light kit, compliant with EU lighting regulations
-
Multi-function rear lights: tail, turn indicator, stop, reflector & number plate
-
14 high-brightness Super LEDs per lamp for clear visibility and safety
-
Wide voltage range: 12V / 24V, suitable for trailers and light commercial vehicles
-
7-pin PVC plug for standard European trailer connections
-
7.5m main wiring harness for flexible installation
-
2.5m cable between the two rear lights
-
Waterproof design for reliable outdoor and all-weather use
-

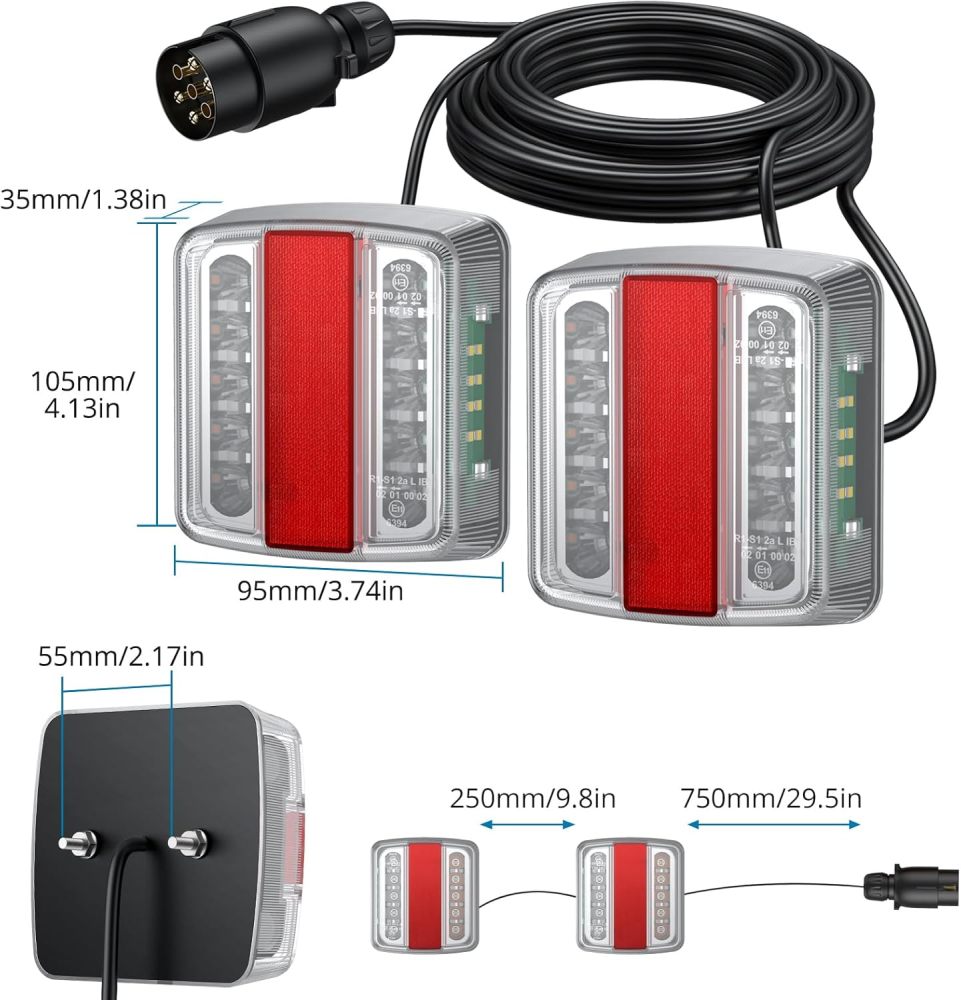

Compact unit size: 105 × 98 × 36 mm
-
Supplied as a complete LED trailer lighting kit, ready to install
🔹 Technical Specifications
| Item | Specification |
|---|---|
| Product Type | LED Trailer Light Kit |
| Approval | E9 |
| Voltage | 12V / 24V |
| Functions | Tail / Turn / Stop / Reflector / Number Plate |
| LEDs per Light | 14 pcs |
| Plug Type | 7-Pin (PVC) |
| Main Cable Length | 7.5 m |
| Cable Between Lights | 2.5 m |
| Waterproof | Yes |
| Unit Size | 105 × 98 × 36 mm |
| Market | Europe (EU) |
| Packaging | 1 set |
🔹 Typical European Applications
This E9 approved LED trailer light kit is suitable for:
-
Utility and box trailers
-
Small boat trailers
-
Leisure and garden trailers
-
Caravans and camper trailers
-
Light commercial trailers
