Technical Specifications
-

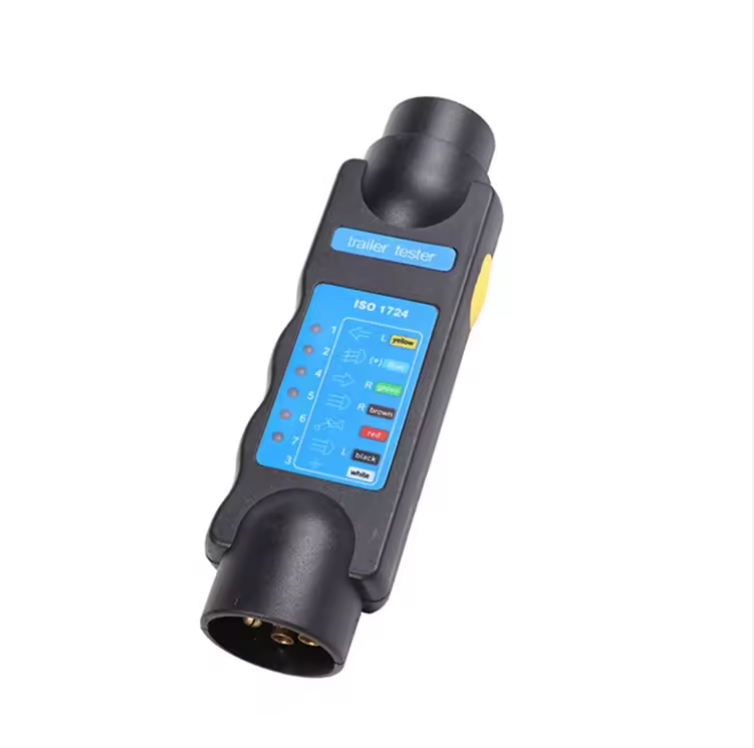

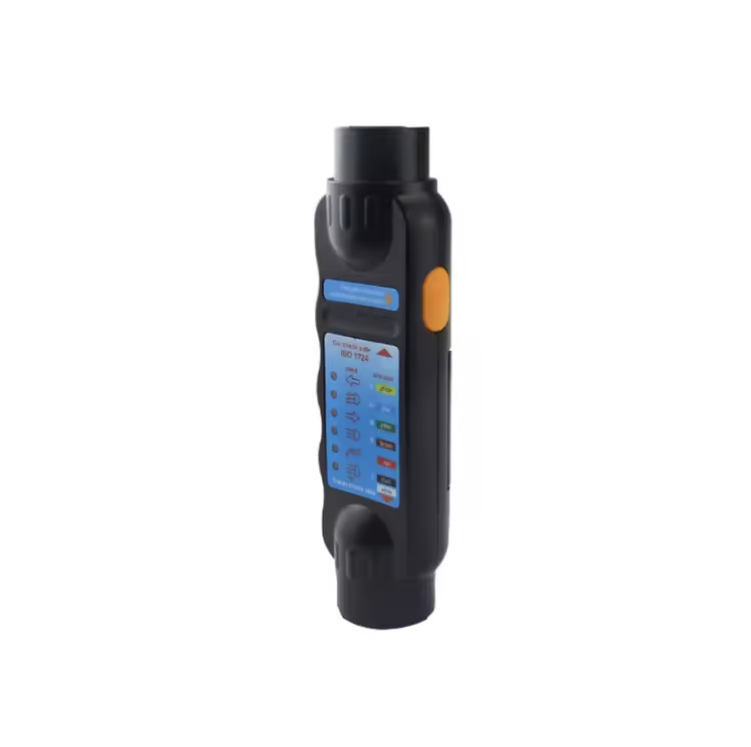

Product Type: 7-Pin Plug & Socket Tester (Trailer Lighting Tester)
-
Voltage: 12V DC System
-
Housing Material: Durable ABS Plastic
-
Display: Multi-Function LED Indicators
-
Compatibility: Common European 7-Pin Trailer Plugs & Sockets
-
Primary Function: Tests wiring continuity, pin connection, and grounding
-
Operation: Plug-and-Play, No External Power Required
-
Design: Compact, Portable
-
Application: Towing Vehicle Socket Testing, Trailer Plug Testing
Key Features
Quick Visual Fault Diagnosis
Plug the tester into your vehicle’s 7-pin socket or a trailer’s plug. The corresponding LED lights instantly indicate which circuits (lights, indicators, brakes) are correctly powered and connected, helping you identify faults in seconds.
Wide Compatibility with 7-Pin Systems
Designed for the common European 7-pin configuration, this tester is a versatile tool suitable for diagnosing most cars, SUVs, caravans, trailers, and RVs equipped with standard 7-pin connectors.

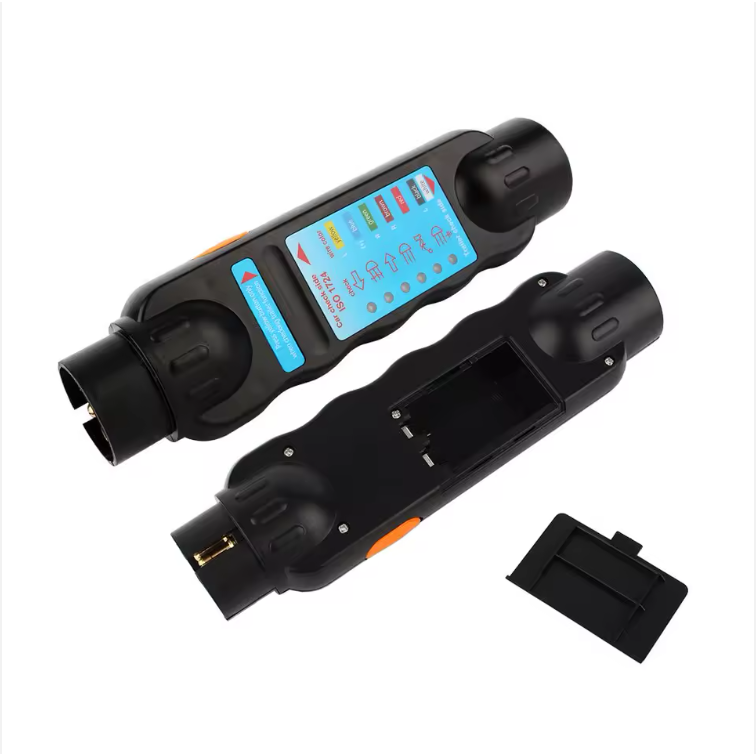

Durable & Compact ABS Housing
Built with robust ABS plastic, the tester is impact-resistant and designed for long-term use. Its compact size makes it easy to store in your vehicle’s glove box or tool kit for on-the-go troubleshooting.
Enhances Towing Safety
By quickly verifying that all trailer lighting signals (brake lights, turn indicators, tail lights) are functioning before you hit the road, this tester helps prevent accidents caused by faulty trailer lights, promoting safer journeys.
Easy to Use, No Expertise Required
Its operation is intuitive—just plug it in and read the LEDs. No technical knowledge or additional tools are needed, making it perfect for both DIY users and professional mechanics.

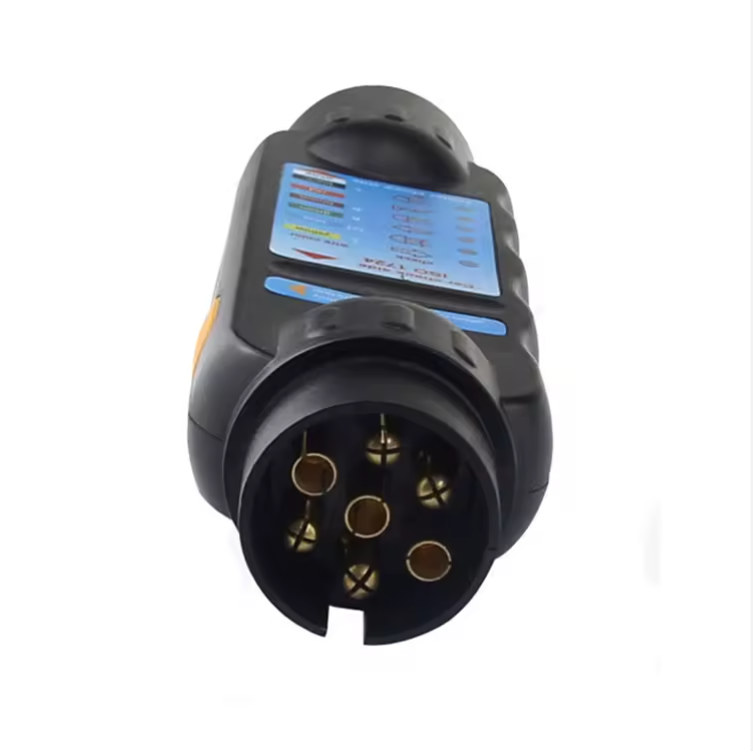

Tests Both Vehicle Socket & Trailer Plug
Functioning as both a socket tester (for the towing vehicle) and a plug tester (for the trailer), it provides a complete diagnostic solution for the entire electrical connection.
Smart FAQ
Q1: How do I use this 7-pin tester?

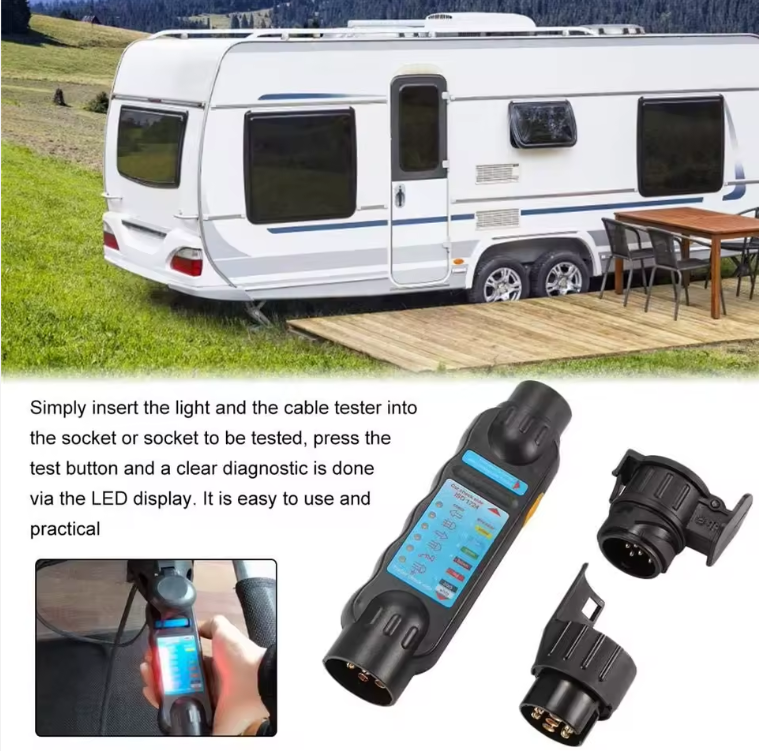

A: It’s very simple. For testing your car’s socket: plug the tester’s male pins into your vehicle’s 7-pin socket. For testing a trailer’s plug: connect the tester’s female socket to the trailer’s plug. Turn on your vehicle’s lights, indicators, and brakes one by one, and observe which corresponding LEDs on the tester light up.
Q2: What does it test for?
A: It primarily tests for electrical continuity—whether power is correctly reaching each pin. It can help identify issues like blown fuses, broken wires, poor ground connections, or incorrect wiring between your vehicle and trailer.
Q3: Is it compatible with all 7-pin trailers?
A: It is designed for the common European 7-pin standard. If your vehicle and trailer use this standard pin layout (common for caravans, trailers, etc.), it will be compatible. Please check your connector type before purchase.
Q4: Does it require batteries or external power?
A: No, it does not. The tester draws a small amount of power directly from the vehicle’s socket when plugged in to illuminate the LEDs. No batteries are needed.
Q5: Can it tell me if a specific bulb on my trailer is blown?
A: Indirectly, yes. If the tester’s LED for a specific function (e.g., left turn signal) lights up when activated from the vehicle, but the corresponding light on your trailer does not, the issue is likely in the trailer itself (blown bulb, wire fault on the trailer side).
Q6: Is it suitable for professional mechanics?
A: Yes. While easy enough for DIY users, its quick diagnostic capability makes it a useful tool for workshops and professionals to rapidly verify socket/plug functionality before more in-depth electrical work.
