Technical Specifications
-

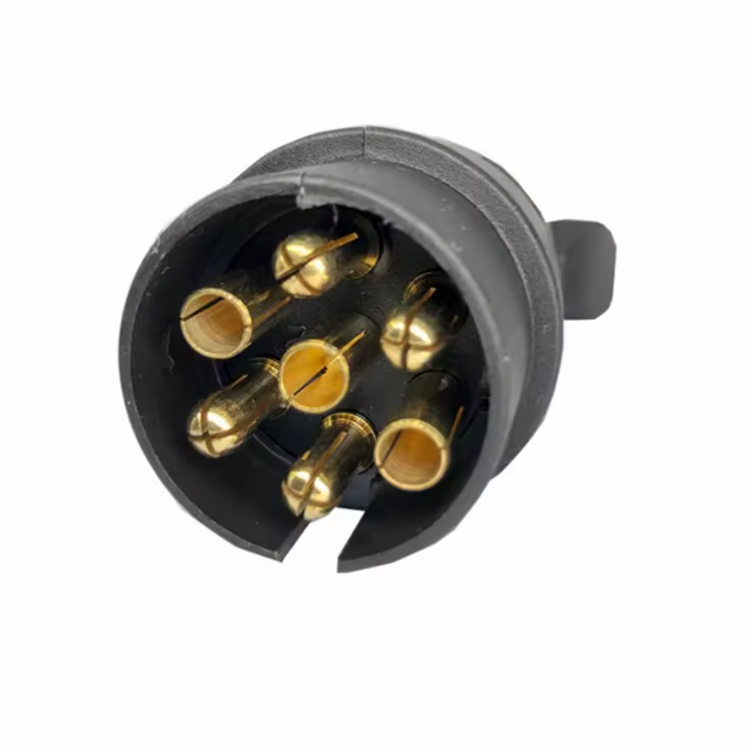

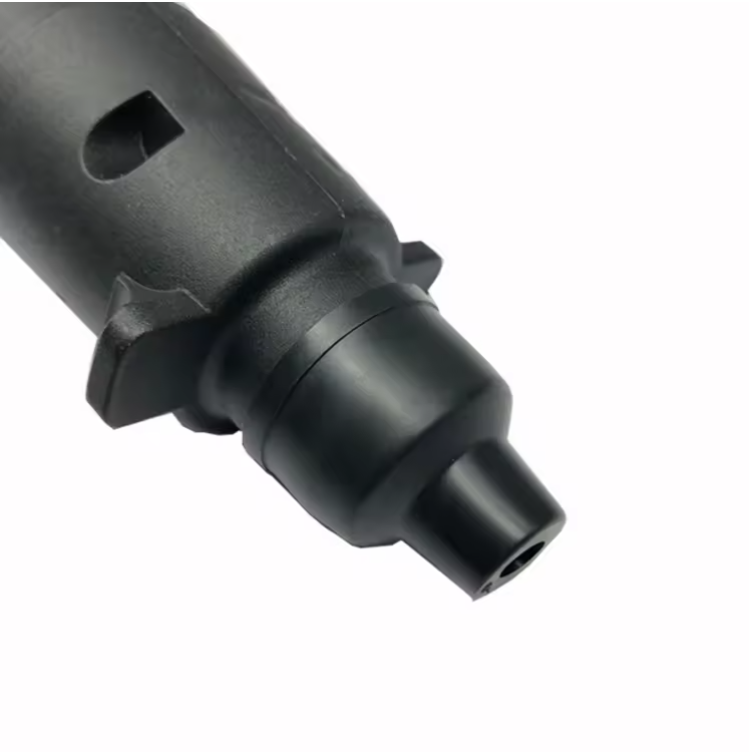

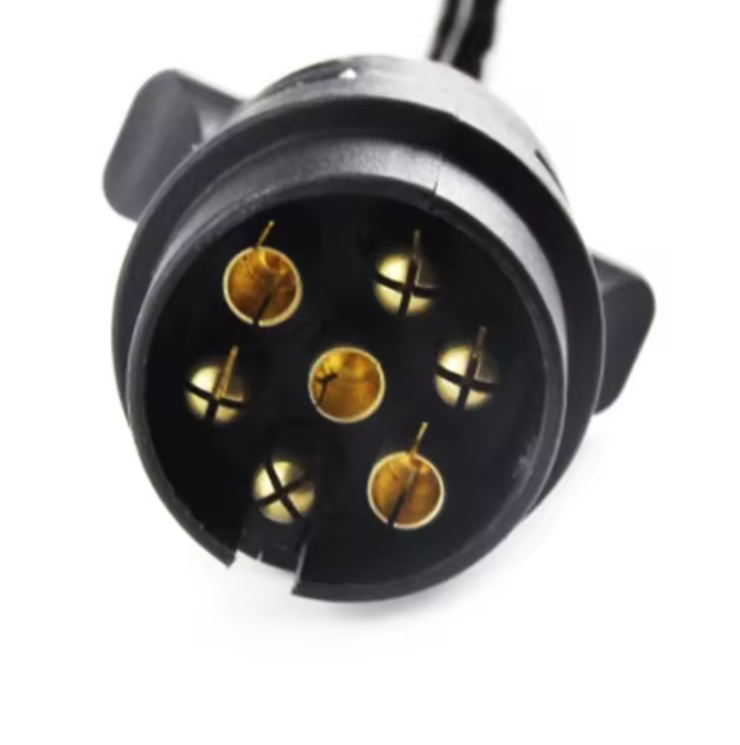

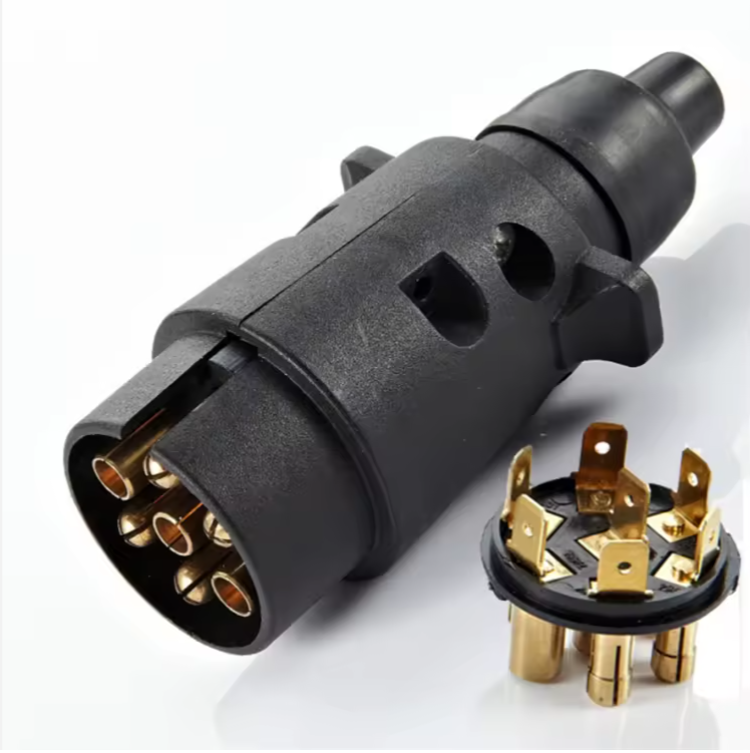

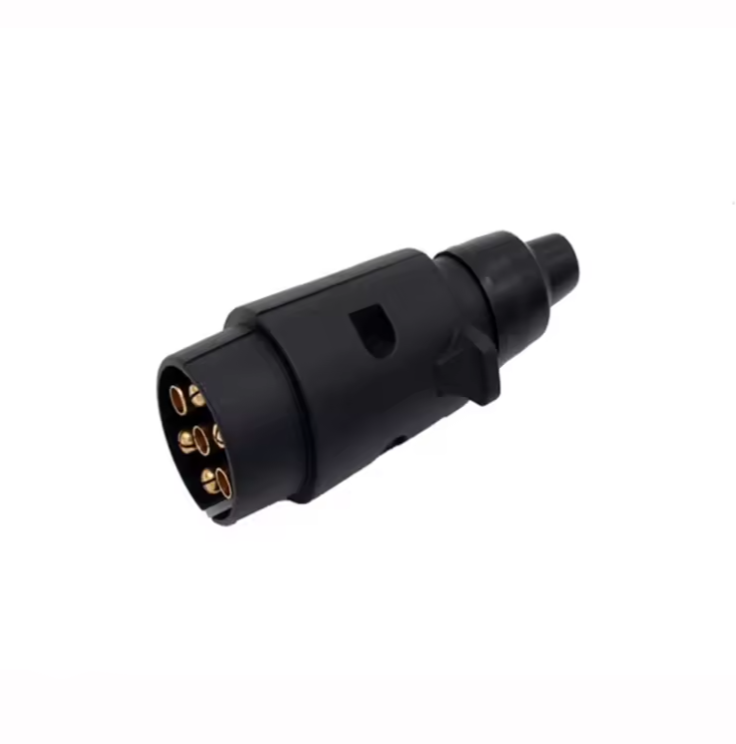

Product Type: 7-Pin Trailer Plug (Male Connector, European Style)
-
Housing Material: Durable PVC (Corrosion & Weather Resistant)
-
Terminal Material: Copper Pins
-
Connection Type: Screw-Type Terminals
-
Voltage: 12V DC System
-
Wiring Standard: Common European 7-Pin Configuration
-
Pin Assignment (Typical European):
-
Pin 1: Yellow – Left Turn Indicator
-
Pin 2: Blue – Rear Fog Light
-
Pin 3: White – Earth (Ground)
-
Pin 4: Green – Right Turn Indicator
-
Pin 5: Brown – Tail / Side Marker Lights
-
Pin 6: Red – Stop / Brake Lights
-
Pin 7: Black – Reverse Light / Auxiliary
-
Weather Protection: Basic sealed construction
-
Color: Black
Key Features
Common European 7-Pin Configuration
Designed to match the prevalent wiring layout used for trailers and caravans across many European countries, aiming for broad compatibility.
Copper Pins for Effective Conductivity
Copper terminals ensure good electrical conductivity for reliable signal transmission to trailer lights, brakes, and indicators.
Durable PVC Housing
The PVC construction offers resistance to corrosion, impacts, and varying weather conditions, contributing to a longer service life.
Screw-Type Terminals for Easy & Secure Wiring
User-friendly screw terminals allow for quick, tool-free wire connections that remain secure against vibrations during travel.
Wide Application Across Trailers
A versatile connector suitable for a range of towing applications, including caravans, horse trailers, utility trailers, box trailers, and boat trailers.
Basic Weather-Resistant Design
The connector body is designed to help protect the internal connections from dust and moisture ingress under normal towing conditions.
Smart FAQ
Q1: Is this plug compatible with my European car and trailer?
A: Yes, it follows the common 7-pin configuration standard across much of Europe. We recommend verifying the pin assignment matches your specific vehicle’s socket, as minor regional variations can exist.
Q2: What are the advantages of copper pins?
A: Copper is an excellent conductor of electricity, which helps ensure minimal voltage drop and reliable operation of your trailer’s lights and signals. It also has good corrosion resistance.
Q3: Is this plug for 12V or 24V systems?
A: This plug is designed for standard 12V electrical systems, which are used in most passenger cars, SUVs, and light commercial vehicles for towing.
Q4: How do I wire this plug? Is it complicated?
A: Wiring is straightforward. The screw terminals allow you to securely attach the wires from your trailer without special crimping tools. Simply match each wire to the corresponding terminal based on the standard European color code (e.g., yellow to Pin 1 for left indicator).
Q5: Can I use this on a boat trailer?
A: Yes, it is suitable for boat trailers. For trailers frequently submerged during launching, ensuring a very tight seal and considering additional waterproofing for the connection point is advisable for long-term reliability.
Q6: What trailer functions does it connect?
A: It connects all essential lighting and signal functions: left/right turn indicators, tail/marker lights, brake lights, rear fog light (where applicable), reverse light, and provides an earth (ground) connection.
