Technical Specifications
-

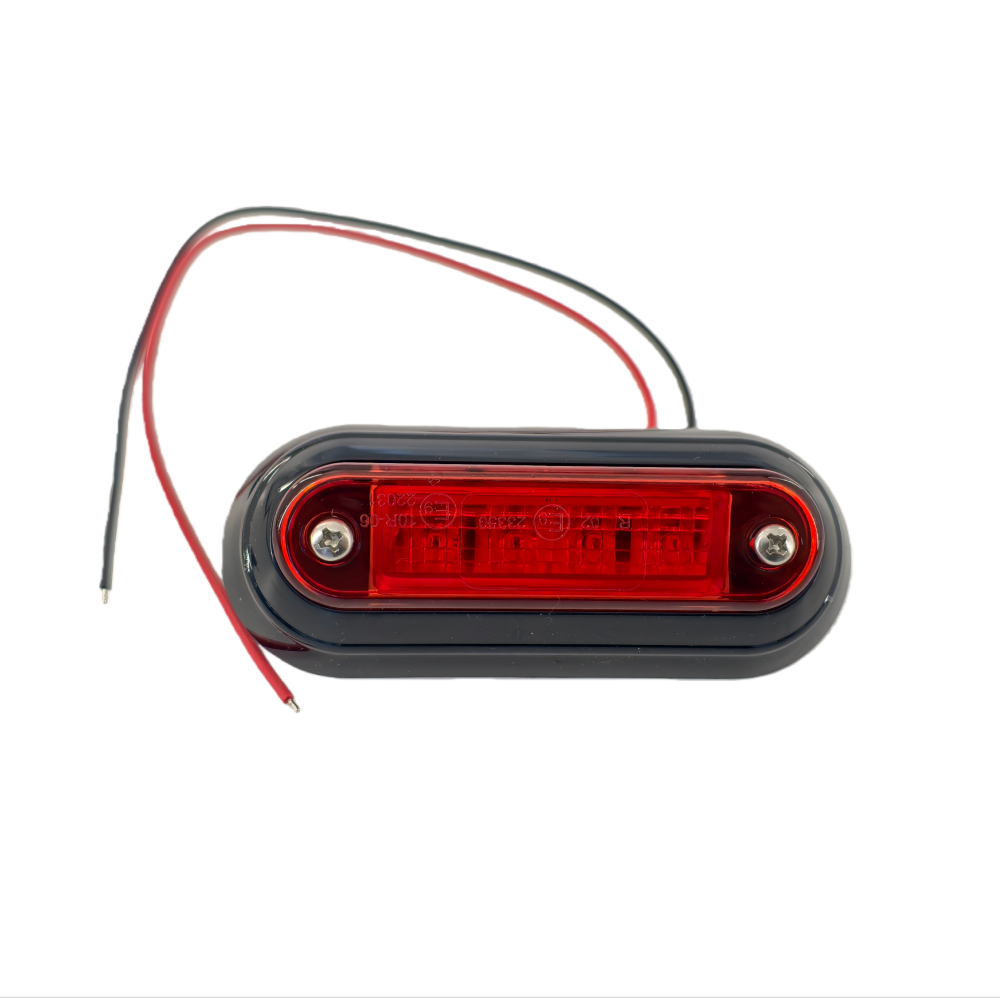

Product Type: LED Marker / Side Marker Light
-
Voltage Range: 12-24V DC (Universal Vehicle Compatibility)
-
Design: Flush Mount (Slim Profile), Optional Surface Mount Bracket Included
-
Certification: E-Approved (Complies with ECE R10 / R148 Standards)
-
Waterproof Rating: IP67 (Fully Dustproof and Submersible)
-
Dimensions: 11.5 cm × 5.5 cm × 4 cm (L × W × H)
-
Lens Material: High-Clarity Polycarbonate (PC), UV-Resistant
-
Housing Material: Sturdy ABS Plastic with Anti-Corrosion Coating
-
Mounting Options:
-
Installation: Pre-Wired Leads with Standard Connectors
Key Features
Versatile Dual Voltage Operation (12/24V)
Designed to work seamlessly with both standard 12V systems (cars, light trucks) and heavy-duty 24V systems (commercial trucks, buses, agricultural vehicles), offering universal application flexibility.

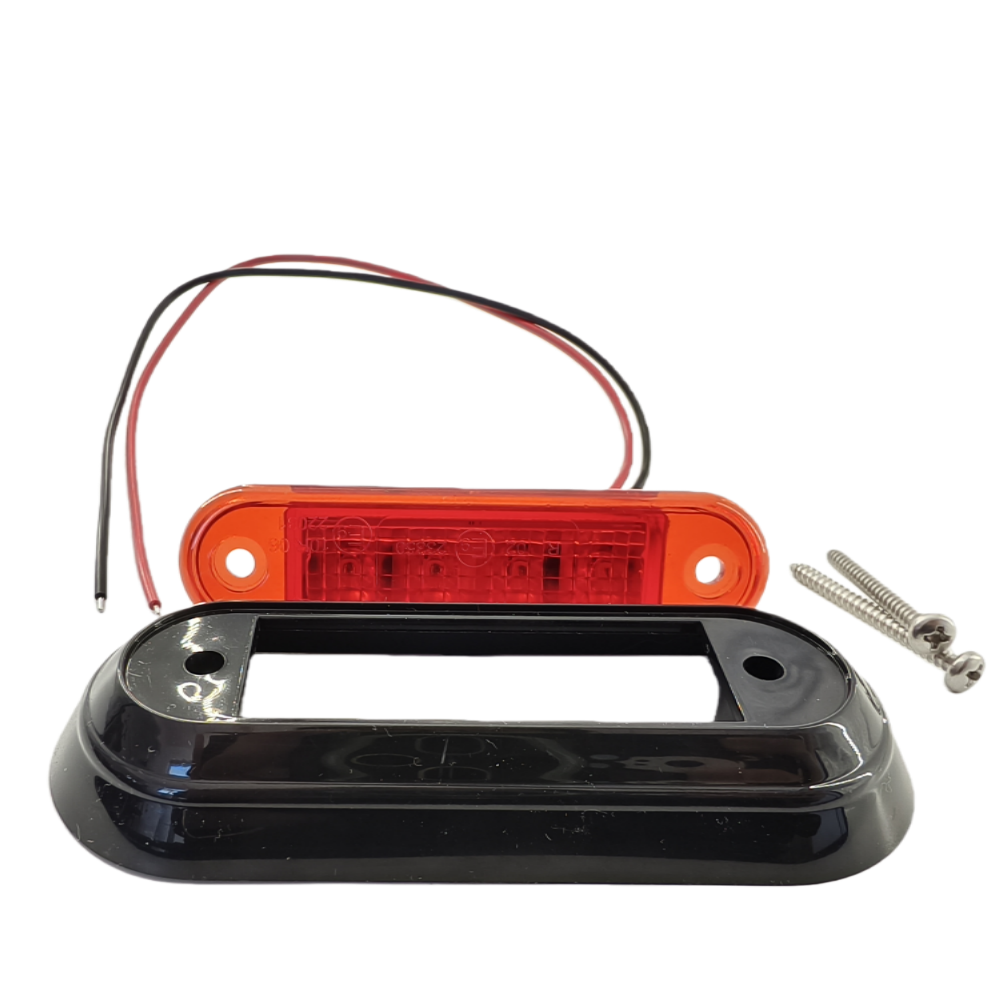

Slim Flush-Fit & Optional Surface Mount Design
The low-profile (4 cm depth) housing allows for sleek, recessed installation into vehicle panels for a clean, integrated look. An optional surface mounting bracket is included for easy installation on flat surfaces without cutting.
E-Approved for European Compliance
Certified to meet European ECE regulations (typically ECE R10 for EMC and R148 for lighting), ensuring the light is legally compliant for road use in Europe and recognized as a high-quality standard globally.
Fully Sealed IP67 Waterproof Construction
Achieves IP67 rating—completely dust-tight and capable of withstanding immersion in up to 1 meter of water for 30 minutes. Ideal for off-road adventures, marine applications, and extreme weather conditions.
High-Brightness LEDs for Enhanced Visibility
Equipped with energy-efficient, long-life LEDs that deliver crisp, bright illumination for side marking, clearance lighting, or as auxiliary running lights, improving safety in low-light environments.
Compact & Durable Build for Longevity
Made from impact-resistant ABS housing and a UV-stable polycarbonate lens, this light is built to endure vibrations, stone chips, temperature extremes, and prolonged sun exposure without fading or cracking.
Smart FAQ
Q1: What does “flush fit” mean?
A: Flush fit means the light is designed to be recessed into a cutout on your vehicle’s body (e.g., door, fender, or trailer side), so the lens sits nearly level with the surface for a sleek, integrated appearance. The optional bracket allows surface mounting if cutting is not desired.
Q2: Is this light legal for use on road vehicles?
A: Yes, its E-Approval signifies compliance with European vehicle lighting standards (ECE). For regions outside Europe (e.g., Australia, USA), check local regulations—many countries accept E-marked lights as meeting high safety benchmarks, but final approval may depend on specific national roadworthiness rules.
Q3: Can I use it on a 24V truck without a voltage converter?
A: Absolutely. The light is designed for dual-voltage (12/24V) operation, meaning it automatically adapts to the input voltage. No additional converters or resistors are needed.
Q4: How difficult is flush mounting?
A: Flush mounting requires cutting a precise opening (template usually provided) in the vehicle panel. If you’re comfortable with basic tools, it’s straightforward. For beginners, the included surface mount bracket offers a tool-free, drill-only installation option.
Q5: What’s the difference between this and a standard marker light?
A: This light offers:
-
Slimmer profile for a more integrated look.
-
Dual voltage support (12/24V).
-
IP67 waterproofing (higher than many standard lights).
-
E-Approval for regulated markets.
-
Optional mounting flexibility (flush or surface).

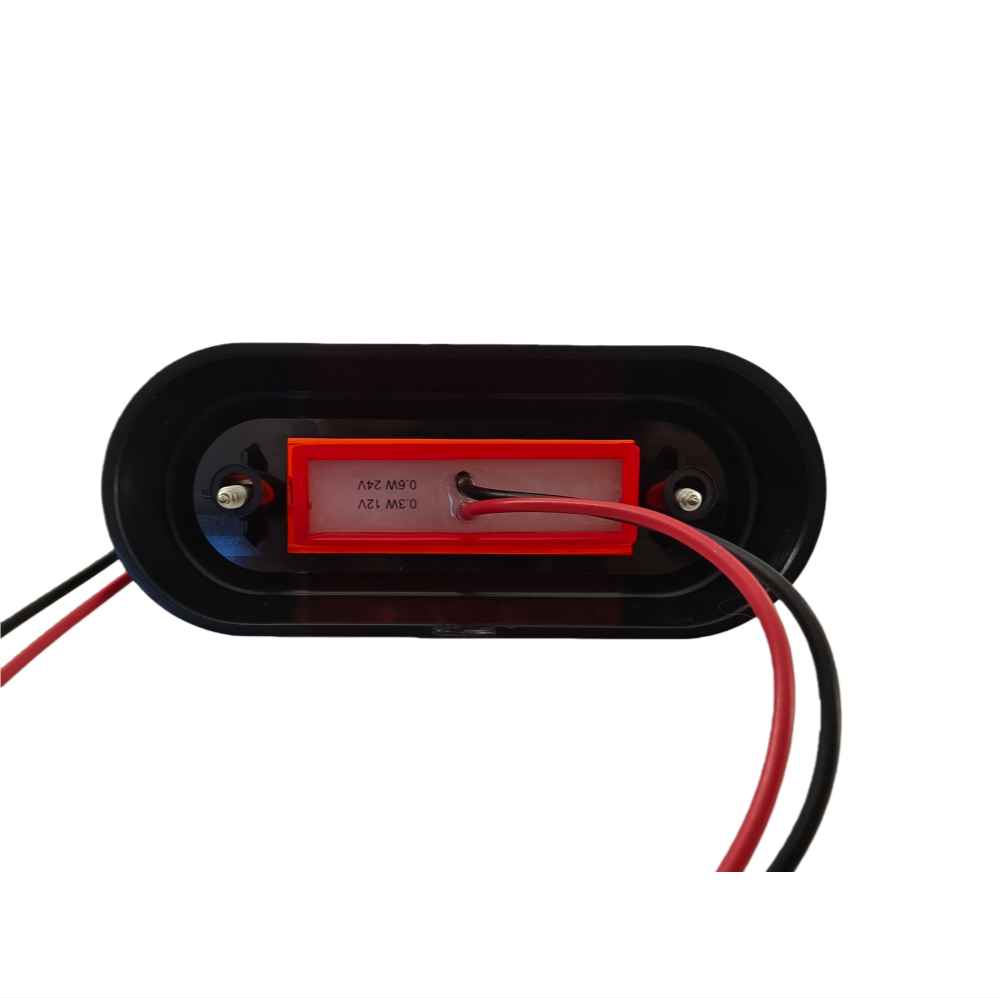

Q6: Does it come with wiring connectors?
A: Yes, it includes pre-attached wires (usually around 20-30 cm) with bare ends or bullet connectors. You can splice them into your vehicle’s wiring or use waterproof connectors for a more secure setup.
Q7: Can it be used as a reverse light or turn signal?
A: It’s primarily designed as a marker/clearance light (constant-on). While bright, check local laws if repurposing for turn signals or reverse lights, as color (amber/red/white) and flash patterns may be regulated.
